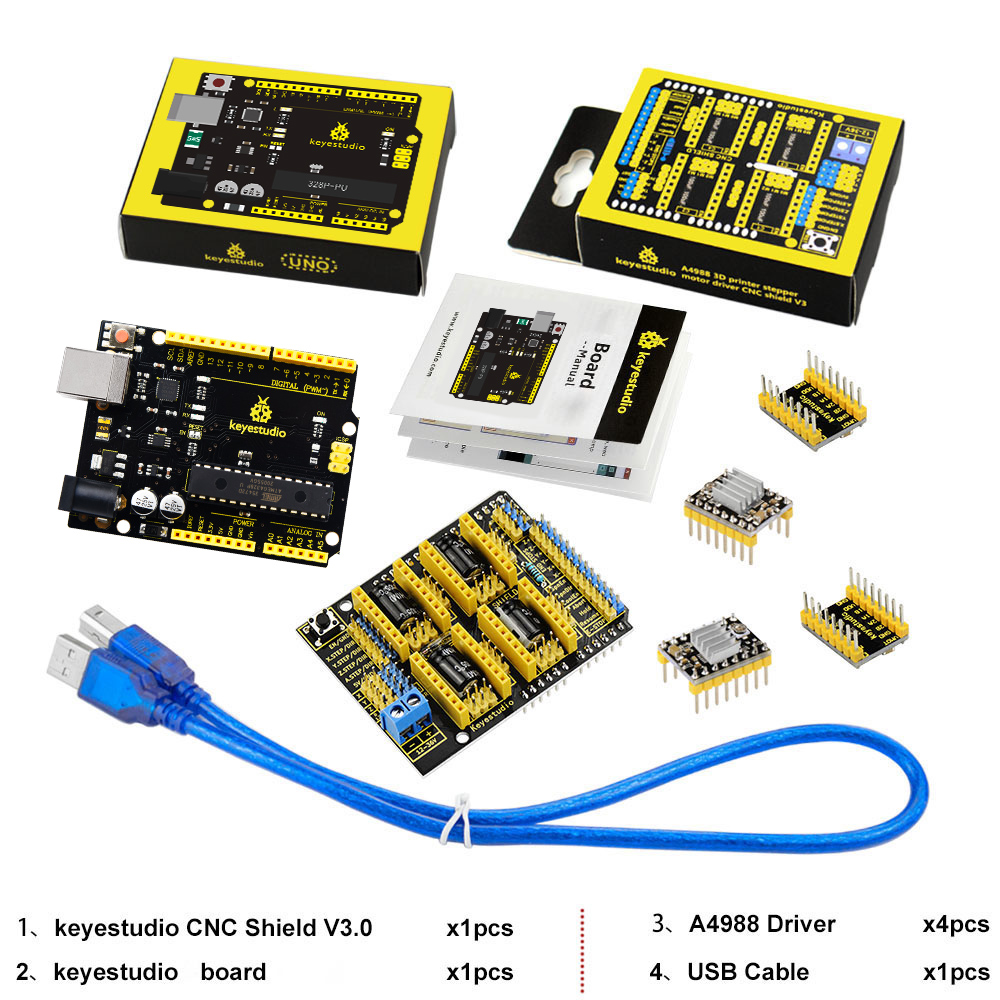

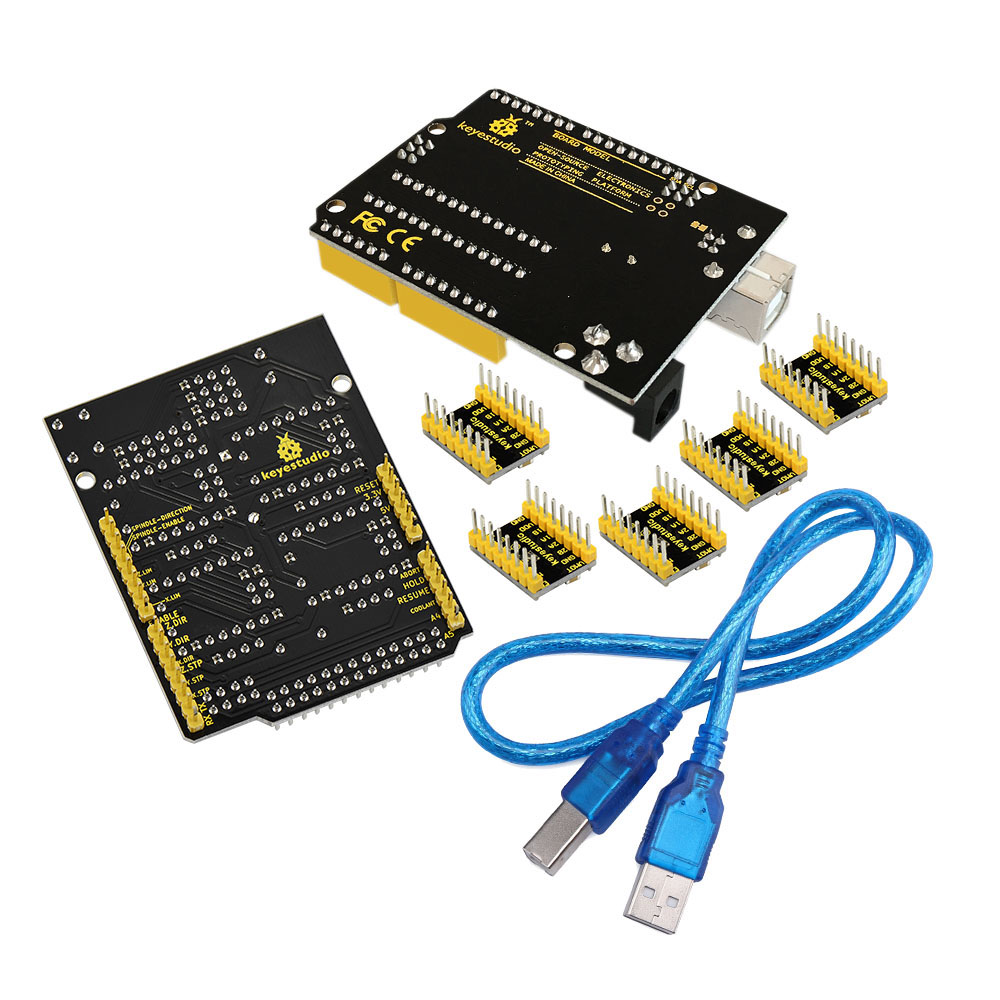

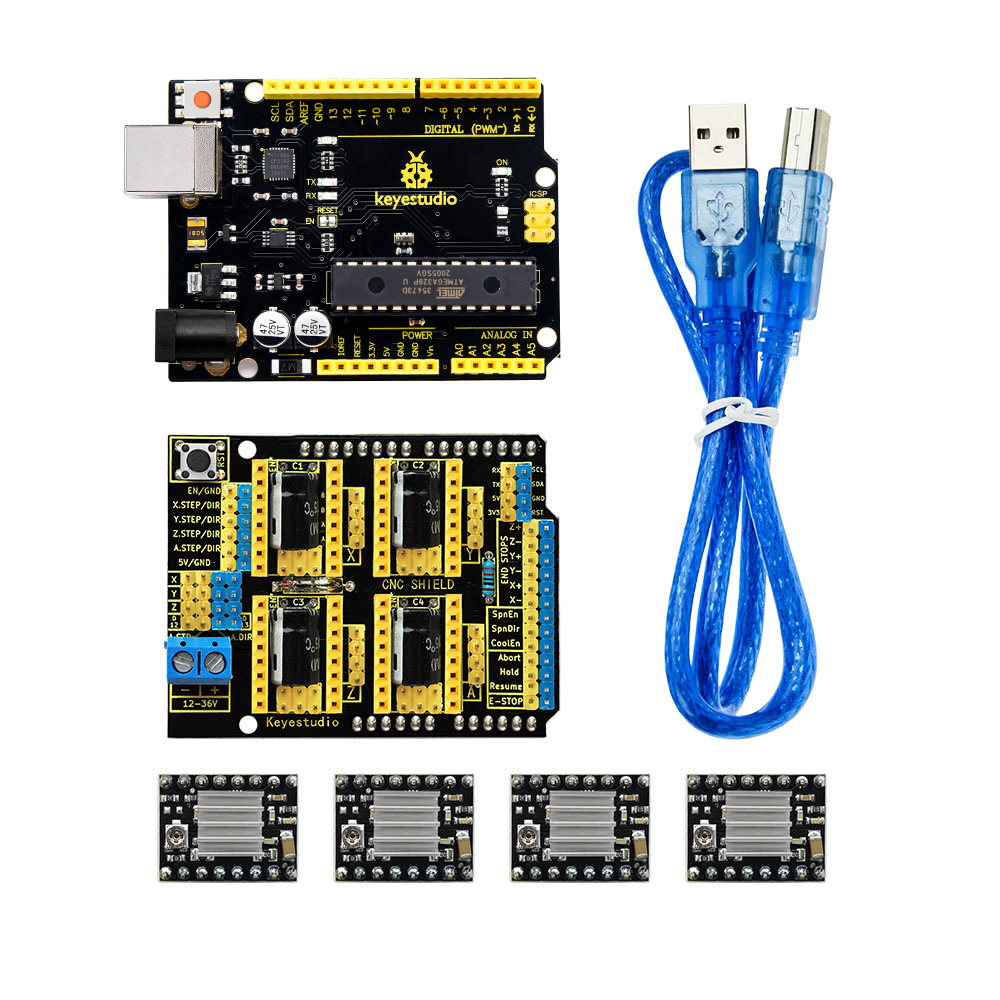

Keyestudio CNC kit For arduino CNC Shield V3+ R3+ 4pcs A4988 driver /GRBL compatible

KS0095
9 Review(s) Sold:30
Have a question?
Price:
USD
$26.50
Quantity:
-
+
(90 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Features
  • Documents
  • Reviews(9)

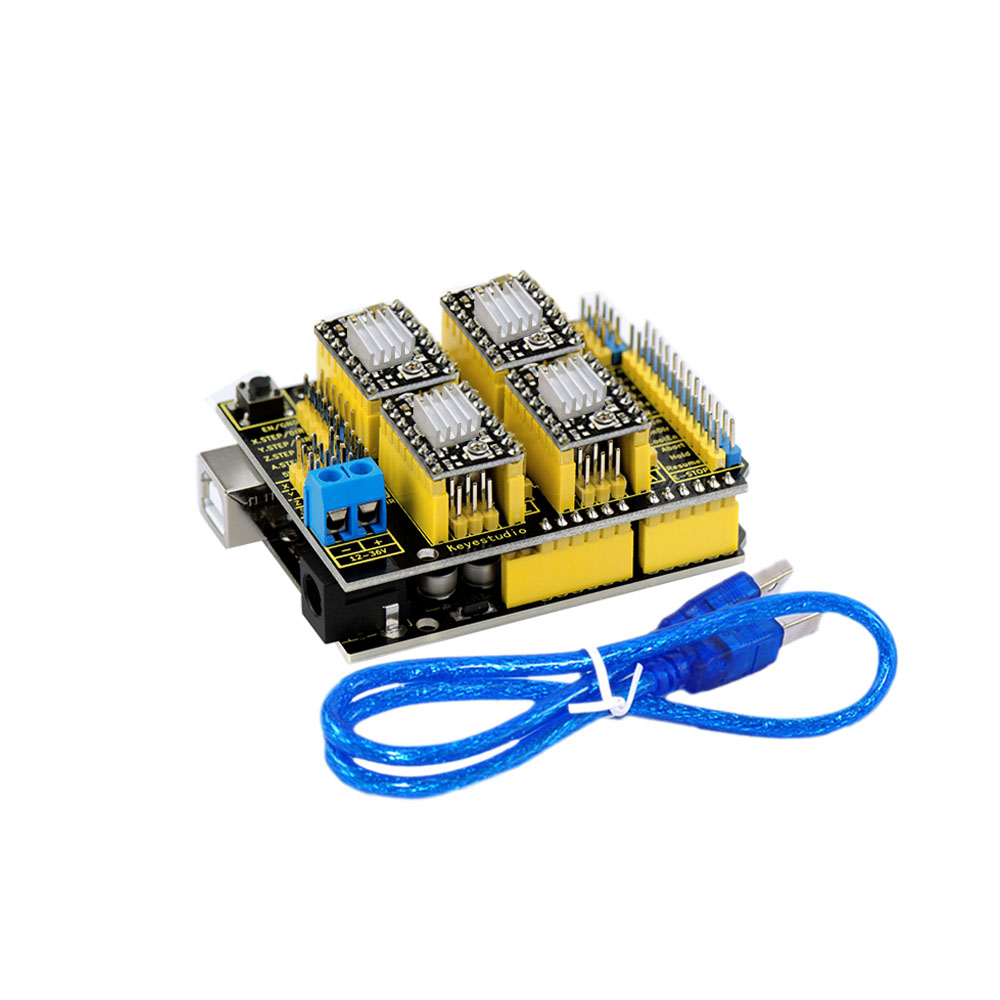

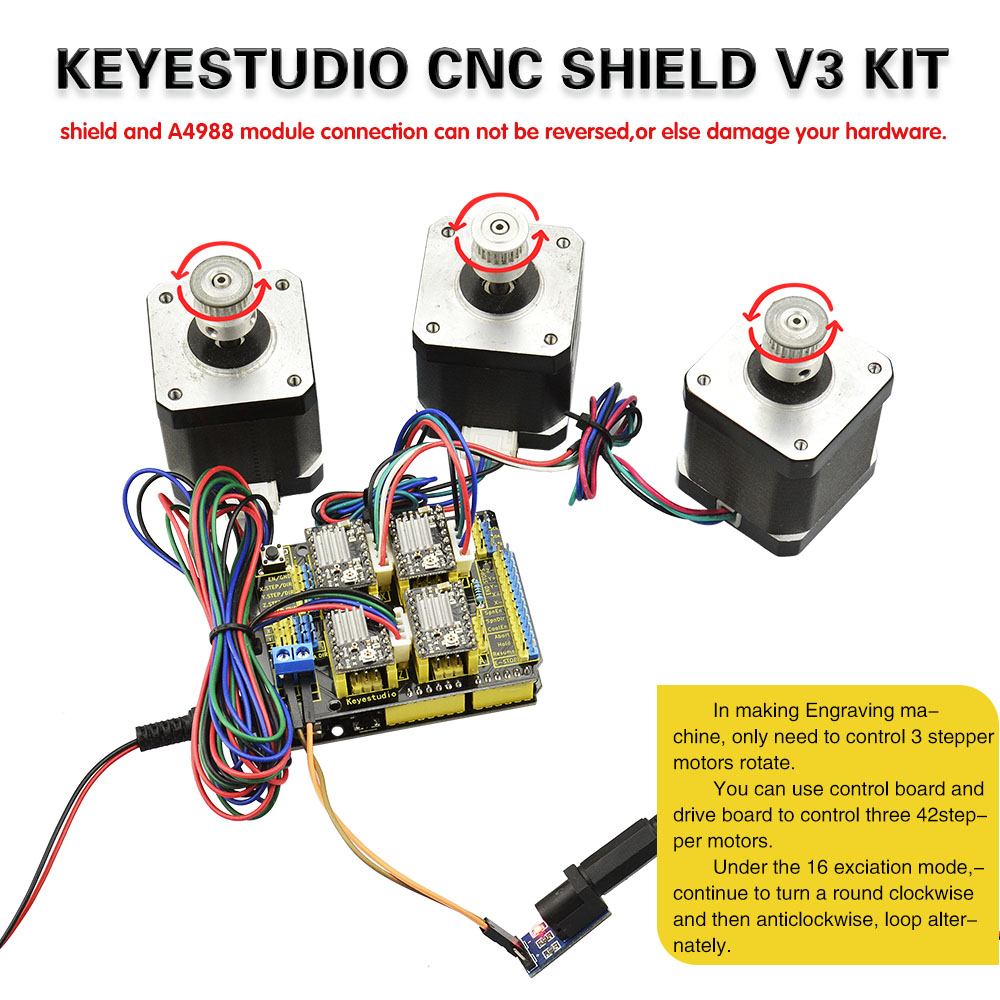

Keyestudio CNC Shield V2.0 can be used as driver expansion board for engraving machines. It has in total 3 channel slots for A4988 stepper motor driver modules (not included) for driving 3 channel of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports is sufficient to manage 3 stepper motors. This shield can make quick work for managing stepper motors in your project.KS0095---v3 ( 4988 ) (4)KS0095---v3 ( 4988 ) (3)KS0095---v3 ( 4988 ) (8)KS0095---v3 ( 4988 ) (6)KS0095---v3 ( 4988 ) (7)



  • GRBL 0.8c compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)

  • 3-Axis support (X, Y, Z , )

  • 2 x End stops for each axis (6 in total)

  • Spindle enable and direction

  • Coolant enable

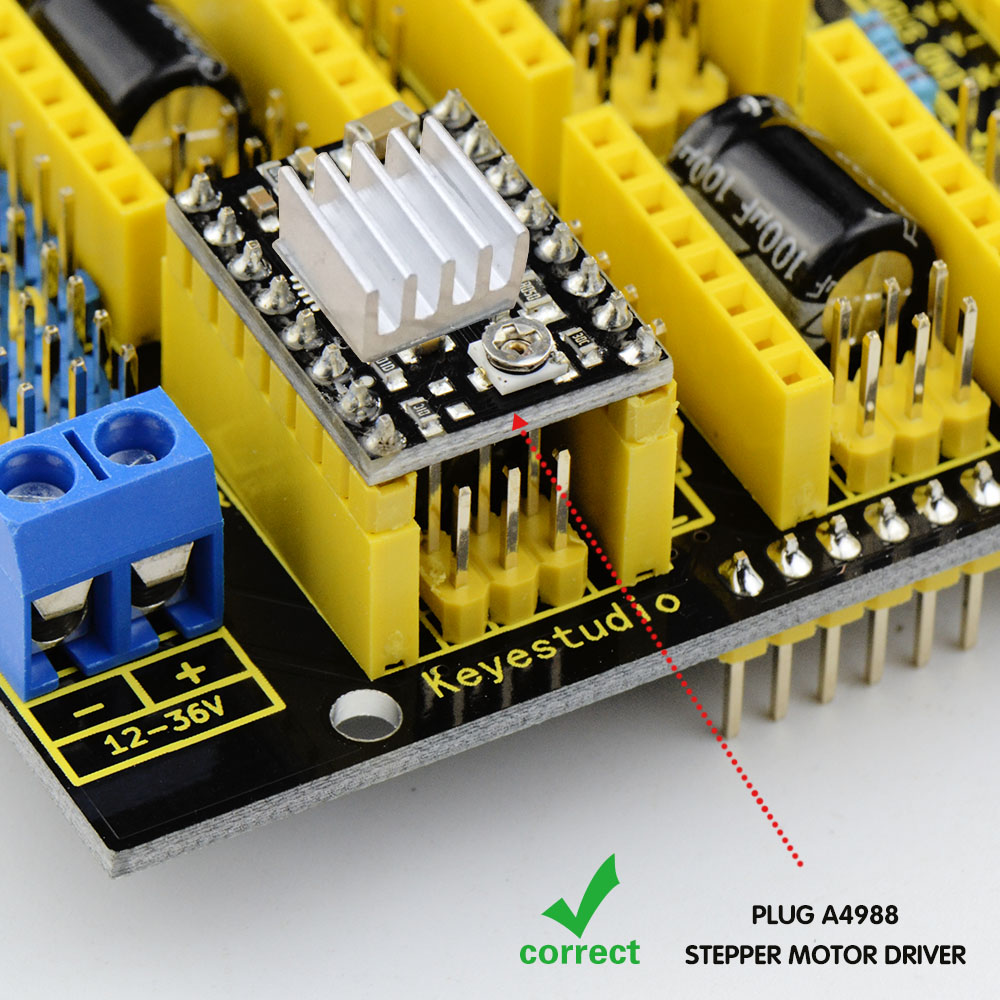

  • Uses removable A4988 compatible stepper drivers. (A4988, DRV8825 and others)

  • Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )

  • Compact design.

  • Stepper Motors can be connected with 4 pin molex connectors or soldered in place.

  • Runs on 12V DC.

Arduino software
WIKI page tutorial
