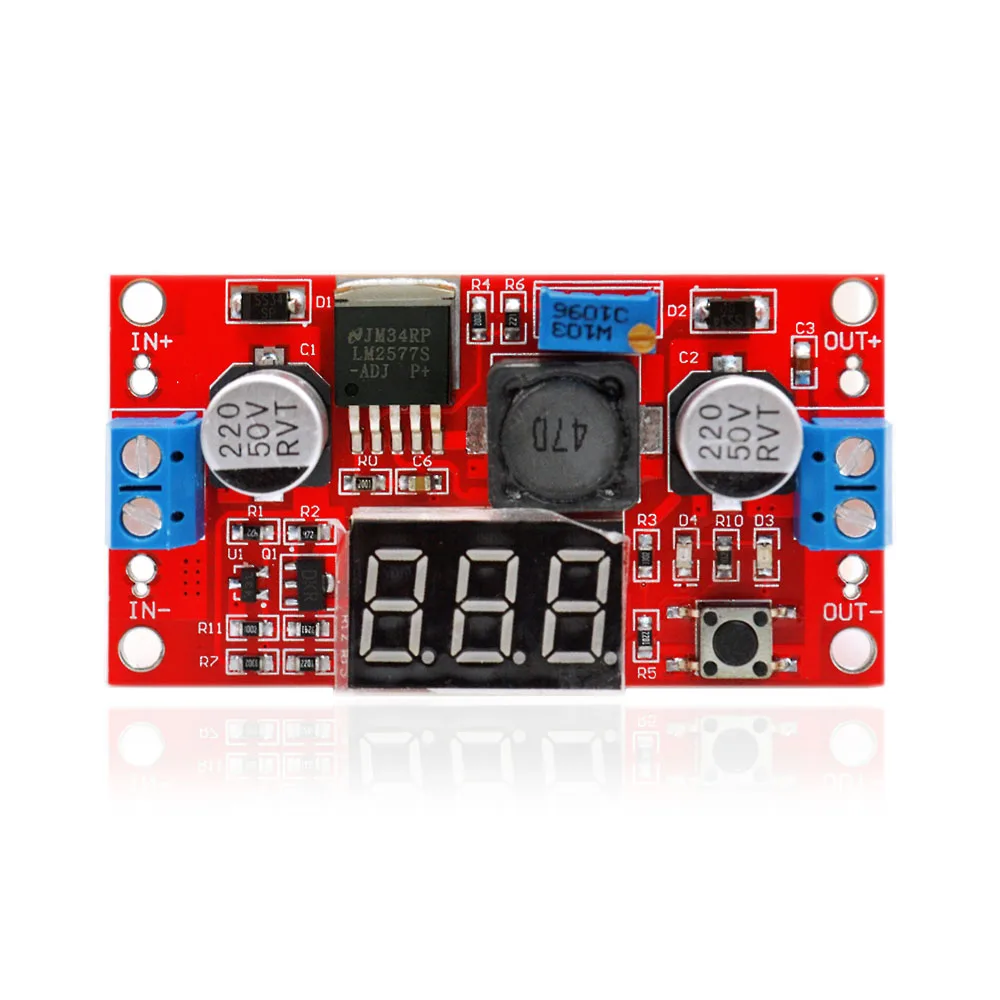

Keyes LM2577 DC-DC Step UP LED Voltmeter 3-34 to 4-35V Adjustable Booster Buck Converter Adapter Module Voltage Regulator

MD0334
Price:
Wholesale:
5+
$3.79
    Please select the information you wantX
Quantity:
-
+
(261 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(49)

MD0334 (8)MD0334 (9)MD0334 (1)MD0334 (3)



Parameters :

Module Properties: non-isolated step-up module

Input voltage :3-34V

Output voltage: adjustable (4-35V)

Output Current : 2.5A (MAX)

Input current : 3A (MAX)

Module size : 49 (mm) x26 (mm)

Input : IN + input positive level , IN- input negative

Output : OUT + output positive level , OUT- output negative

Adjustment method : first correct the input power (3-34V, between ) then multimeter to monitor and adjust the potentiometer output voltage

Output Voltage :4-35V continuously adjustable



Features:

1 display with a voltage meter , voltmeter error of 0.1V, range 0-40V. ( Note: To ensure accuracy voltmeter , please ensure that the input voltage is 3V or more )

2 . Touch of a buttonMeasure the input or output voltage switch , and indicator shows what is being measured voltages ;

3 has a power-down memory function , showing that the circuit voltage value measured for the last time after power ;

4 Press touch of a button for 3 seconds to turn off the LED display , touch the button again to turn on the LED display ;

5 with terminal , no iron can also be easy to use , and retention wire connection point ;

6 Maximum output current up to 2.5A;

7 Currently switching lights are red .
