Keyestudio 3 D Printer Kit RAMPS 1.4 + Mega 2560 + 5x A4988 motor driver + LCD 2004 Cotroller For Arduino Project

KS0091
Price:
Wholesale:
5+
$42.75
    Please select the information you wantX
Quantity:
-
+
(939 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(58)

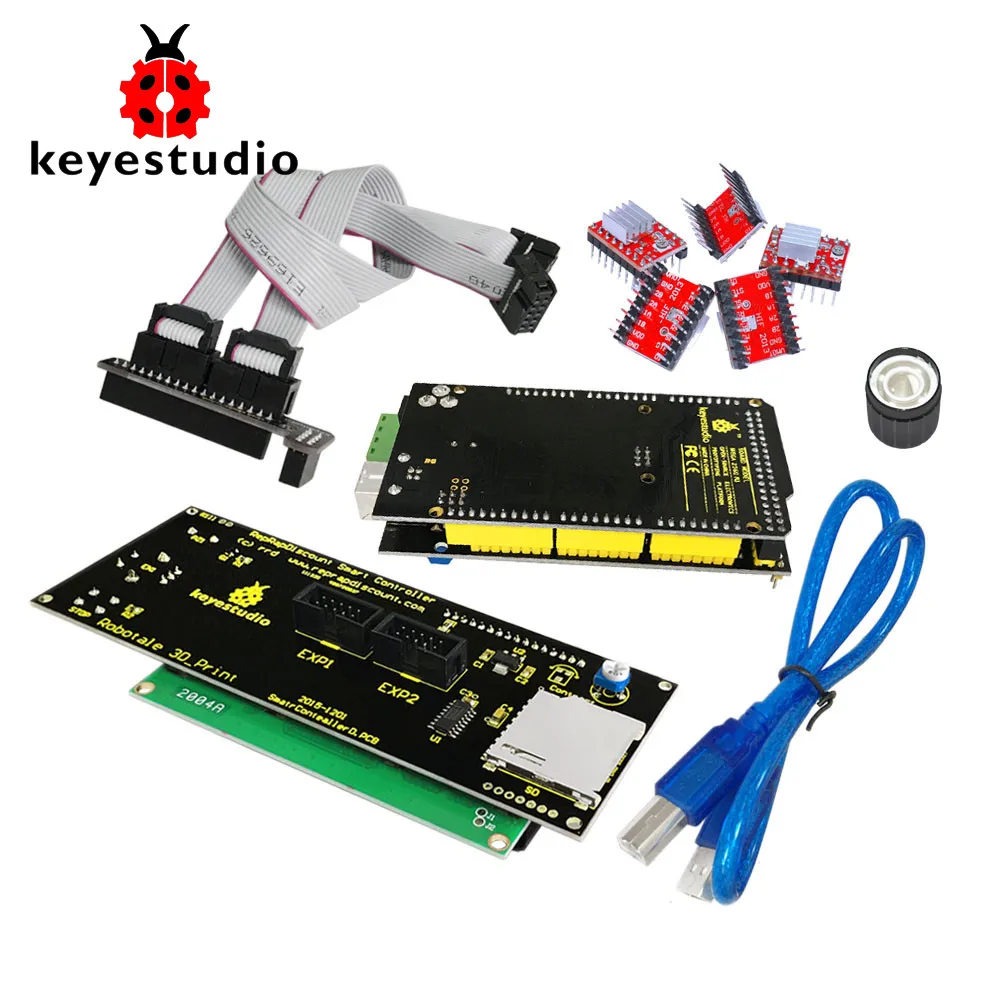

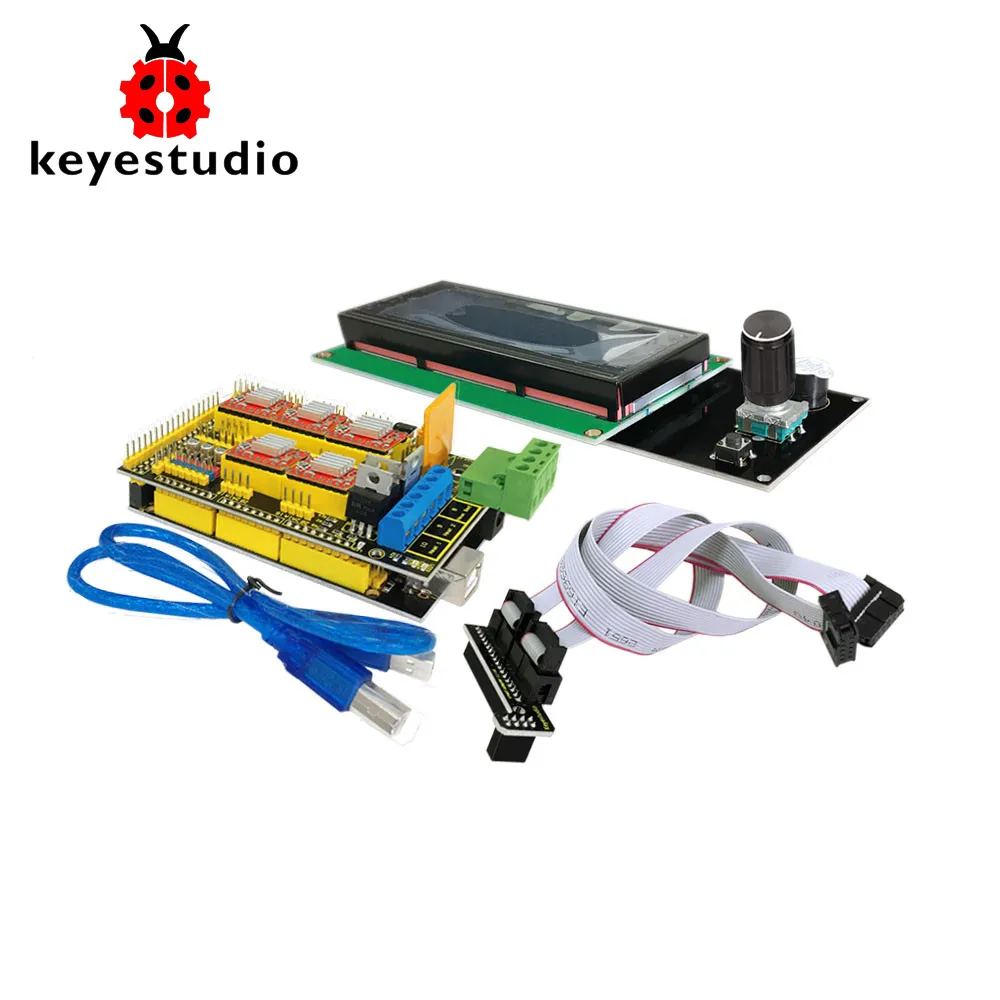

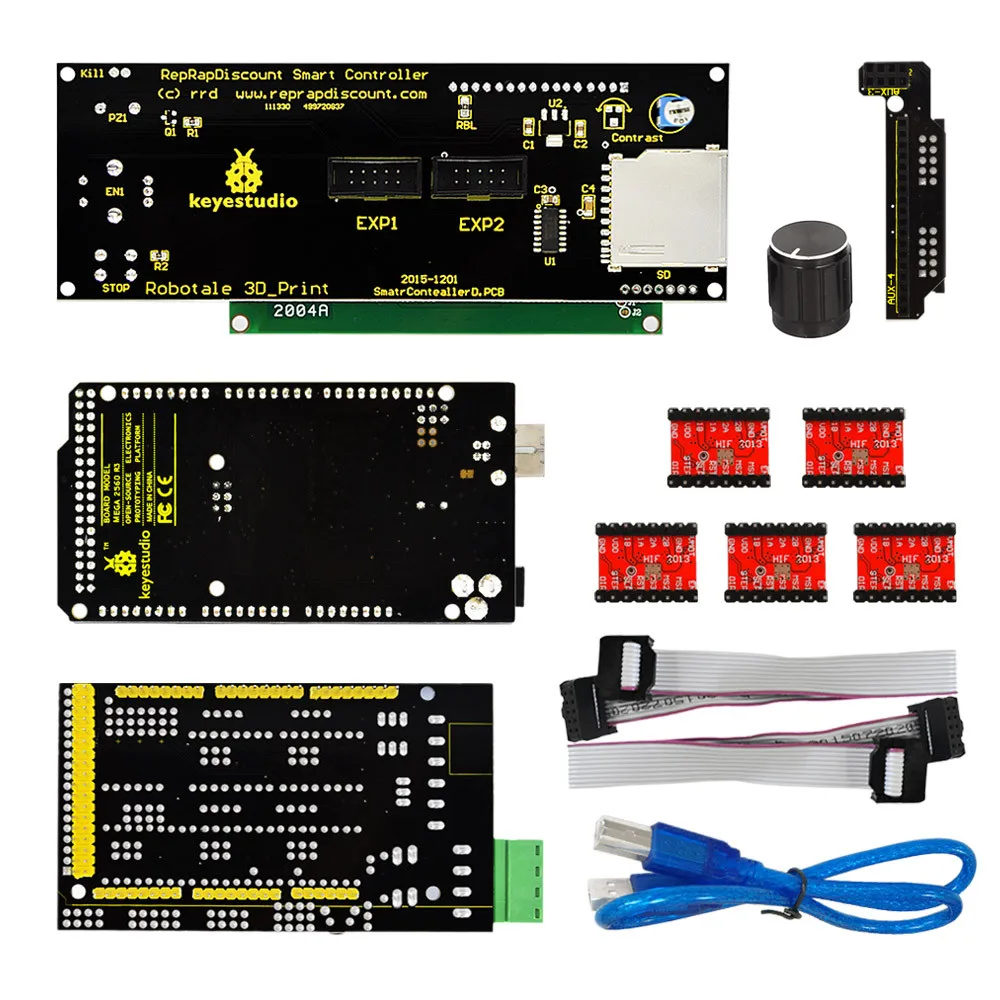

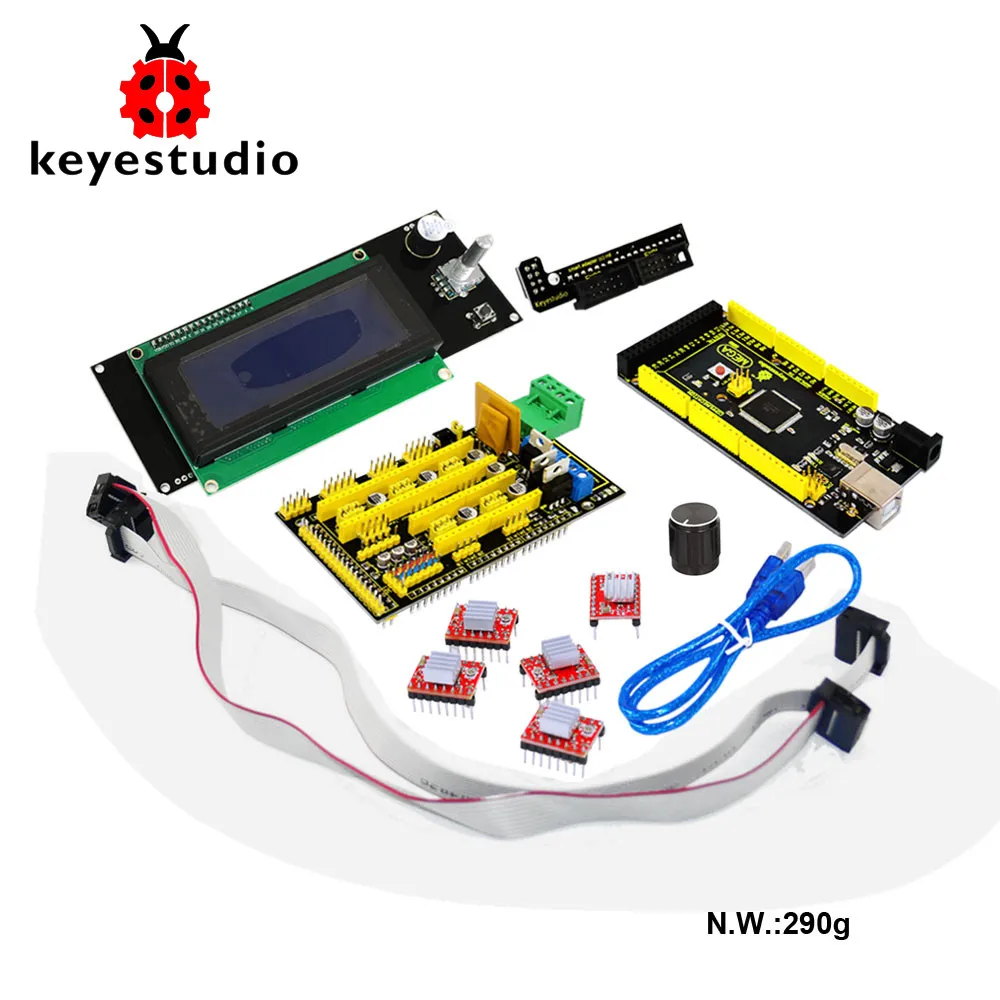

KS0091  (3) KS0091  (4) KS0091  (5) KS0091  (2) KS0091  (1)
Introduction
  • Keyestudio Mega 2560 board

    Keyestudio Mega is an ATmega2560 as core microcontroller development board itself has 54 groups digital I / O input / output terminal (14 groups do PWM outputs), 16 sets of simulation than the input side, group 4 UARTs (hardware serial ports), using the 16 MHz crystal oscillator.
  • LCD 2004 Smart Controller

    It contains a SD-Card reader, a rotary encoder and a 20 Character x 4 Line LCD display. You can easy connect it to your Ramps board using the "smart adapter" included. After connecting this panel to your Ramps you don't need your PC any more, the Smart Controller supplies power for your SD card.

  • RAMPS 1.4

    It is a Mega Pololu Shield, or RAMPS for short,designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Aduino Mega with the powerful Arduino MEGA platform and has plenty room for expansion. The modular design includes plug in stepper drivers and extruder control electronics on an Aduino MEGA shield for easy service, part replacement, upgrade-ability and expansion. Additionally, a number of Aduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.

  • A4988 stepper driver

    This product is a carrier board or breakout board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection by Pololu; we therefore recommend careful reading of the A4988 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2A output current per coil.
Package list

1pc Keyestudio Mega2560
1pc Lcd2004 smart Controller
1pc Ramps 1.4
5pcs A4988 stepper driver
1pcs Panel Adapter
1pcs USB 2.0 cable

For more detail.pls click:


Repetier-Host Download

Arduino IDE Download

Firmware, Driver Software, Testing G-Code and Mask Printing Model Download
