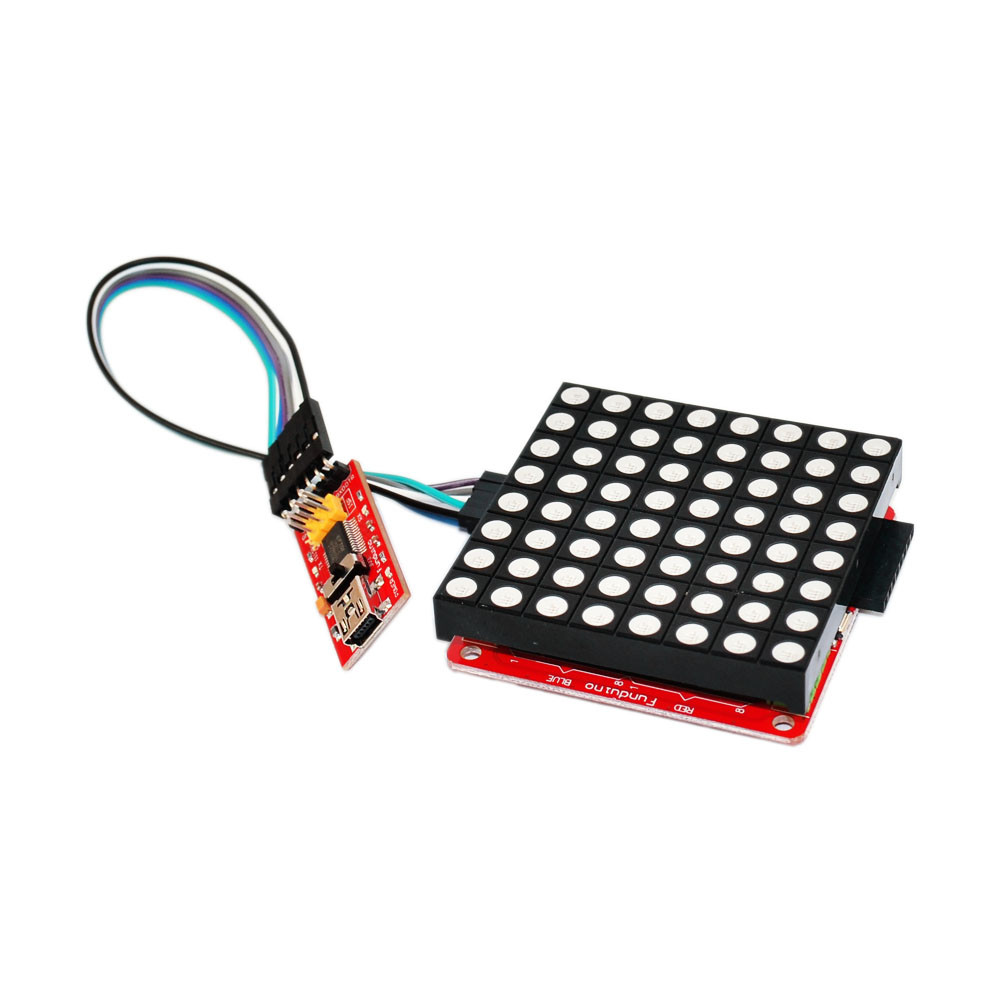

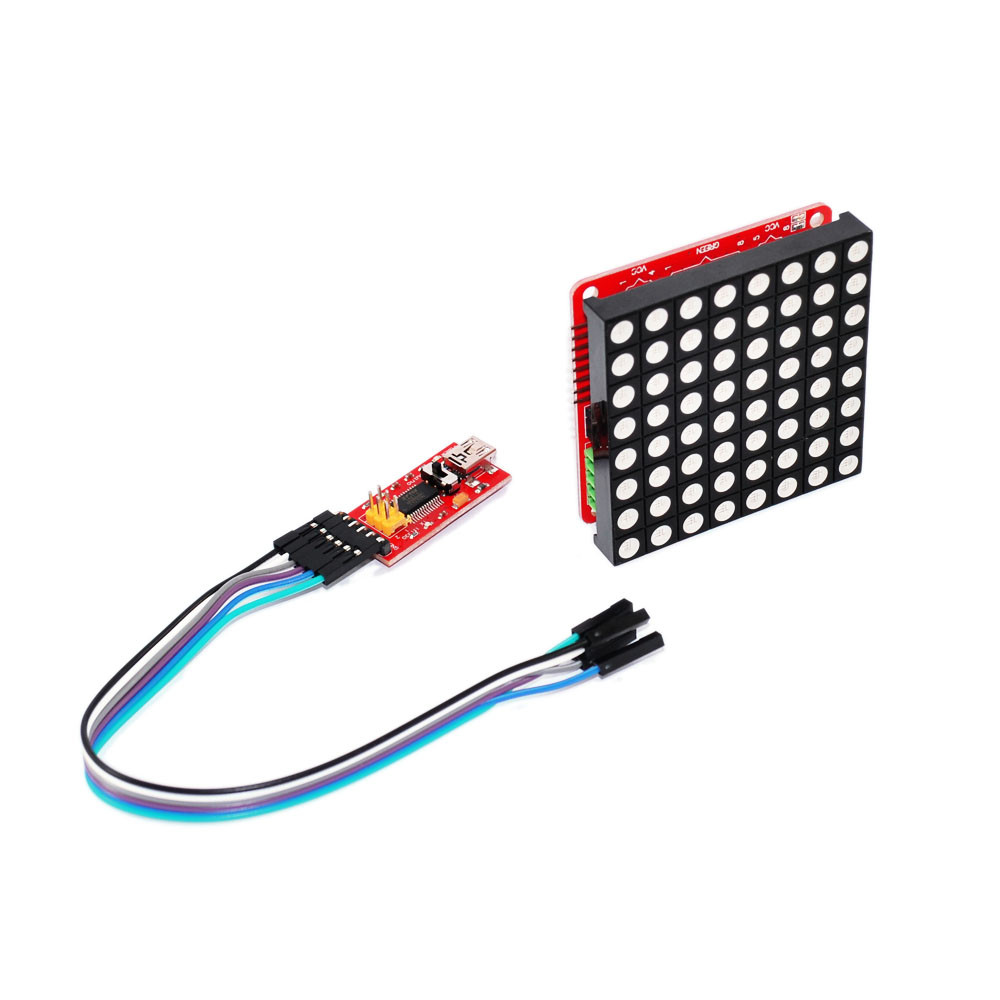

Free Shipping! Full Color RGB Kit for Arduino Programming Education 8 * 8 LED Dot Matrix Screen Driver Board

KT0045
Price:
Wholesale:
5+
$16.62
    Please select the information you wantX
Quantity:
-
+
(980 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(49)





KT0045 (2) KT0045 (4) KT0045 (5) KT0045 (1) KT0045 (6) KT0045 (7) KT0045 (8) KT0045 (9)



Description:

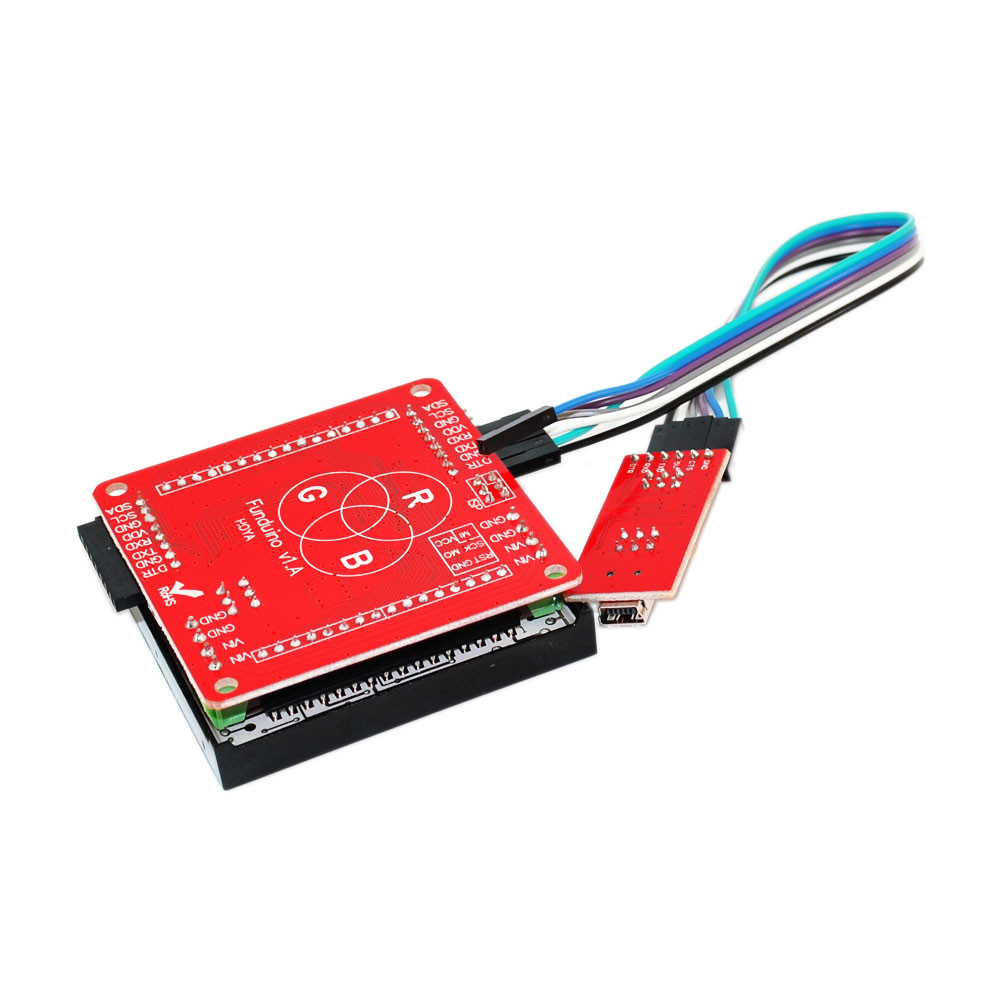

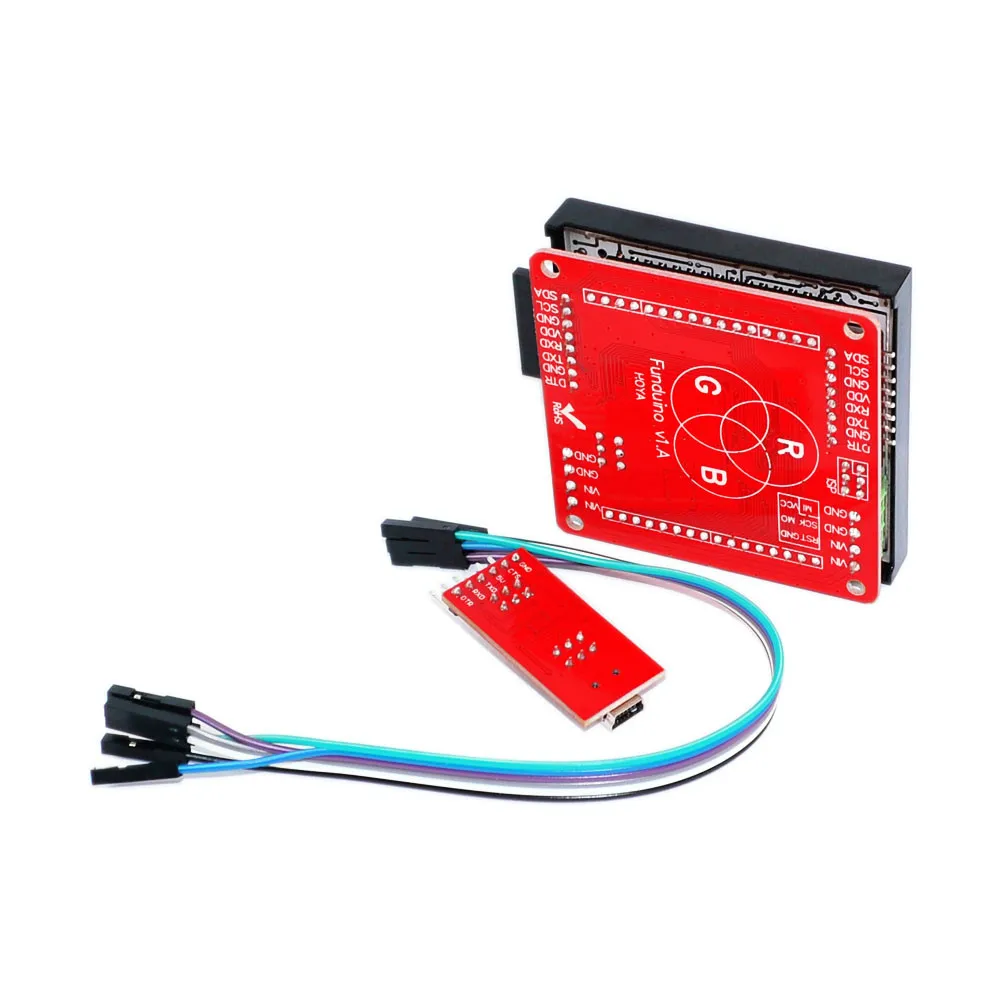

Colordunio RGB is a specialized RGB full color dot matrix design a control board module, which in addition to the RGB matrix can be independently driven, but also can be used as a control panel to use Arduino oh. Very convenient and practical, on-board chip is ATmega 328 chip, board above also raises the ISP interface, you can always give 328 chip programmed bootloader. Disadvantage is not currently see other Arduino Uno board, have no leads to the corresponding I / 0 I come out, but leads to a number of IIC interface and power supply interface. Follow-up time will develop a band I / 0 port board, so that buyers do not need to buy this board buy an Uno board or board of MEGA 2560.



Product Features:

6-bit color support;

support for hardware 16MHZ PWM

there is no additional circuitry

 a dedicated GPIO and ADC interface

support for hardware URAT and IIC communication

24 channel constant current channel current up to 100mA per channel

8 Lu channels each channel constant current source drive current up to 500m

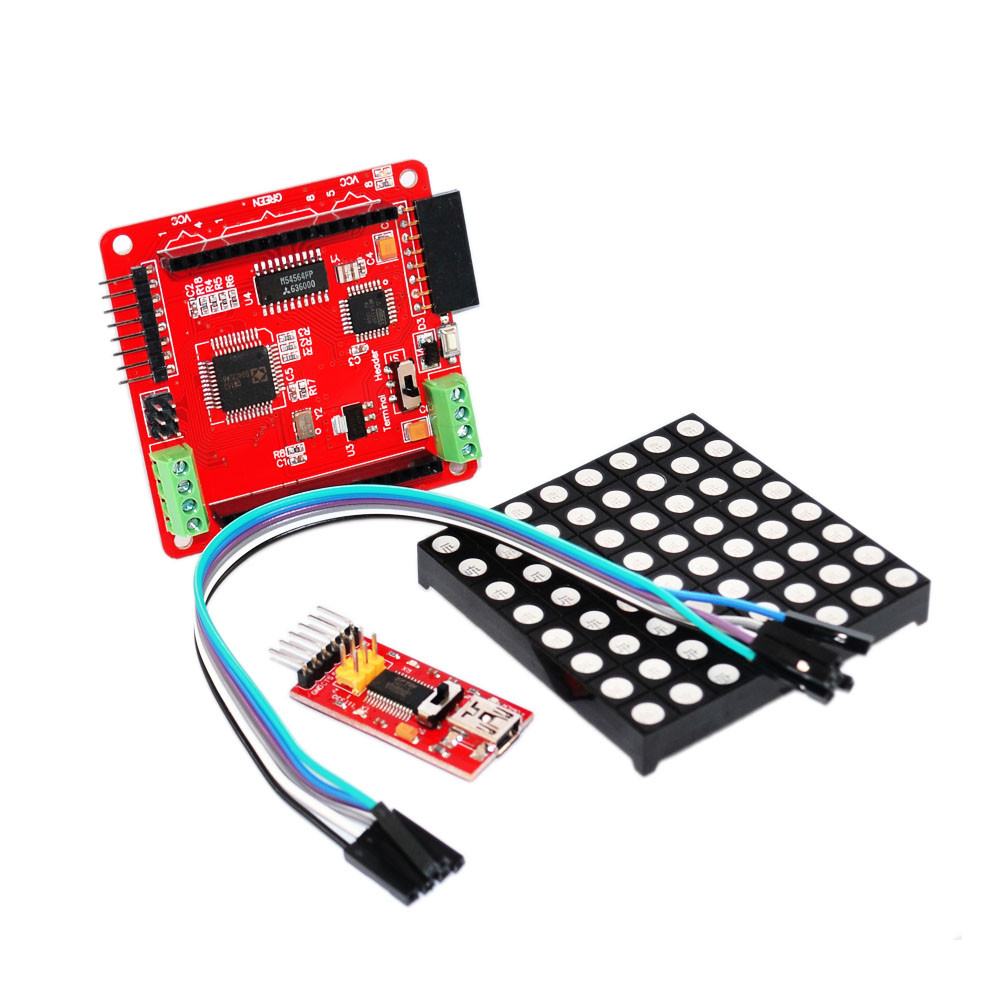

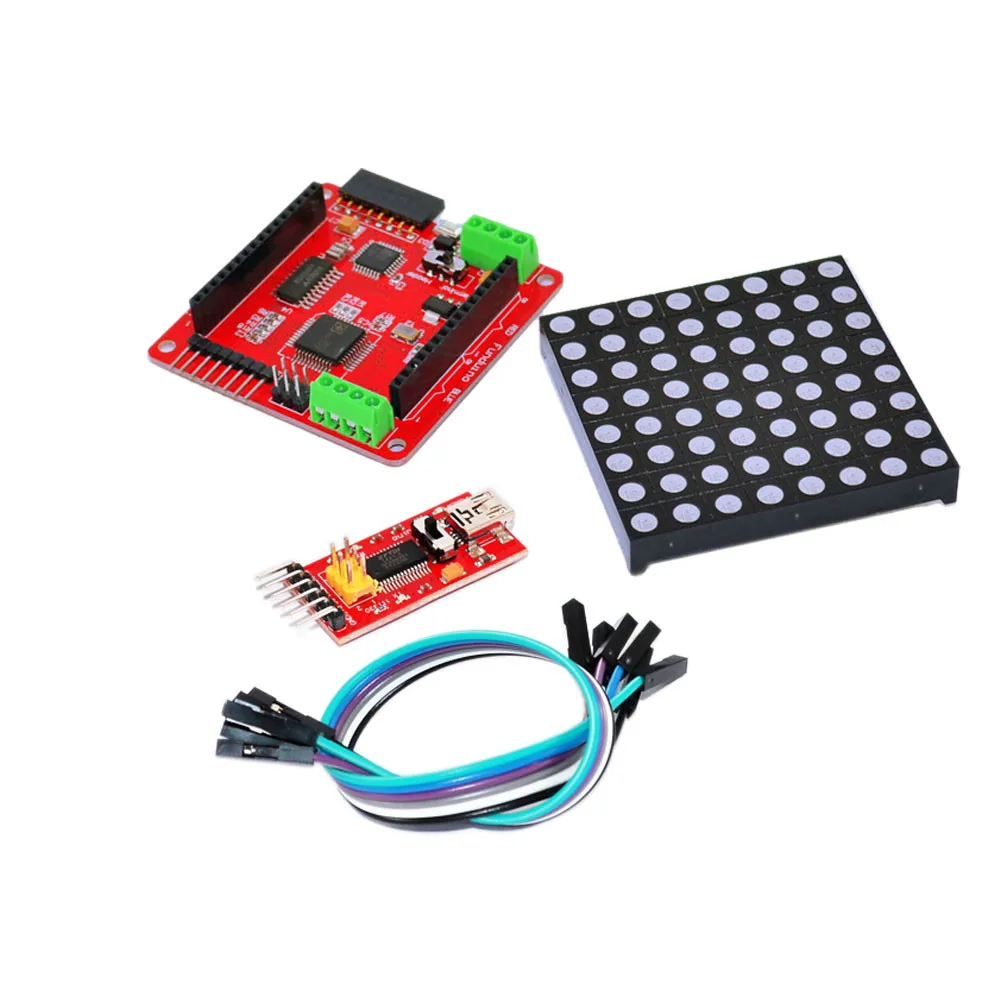

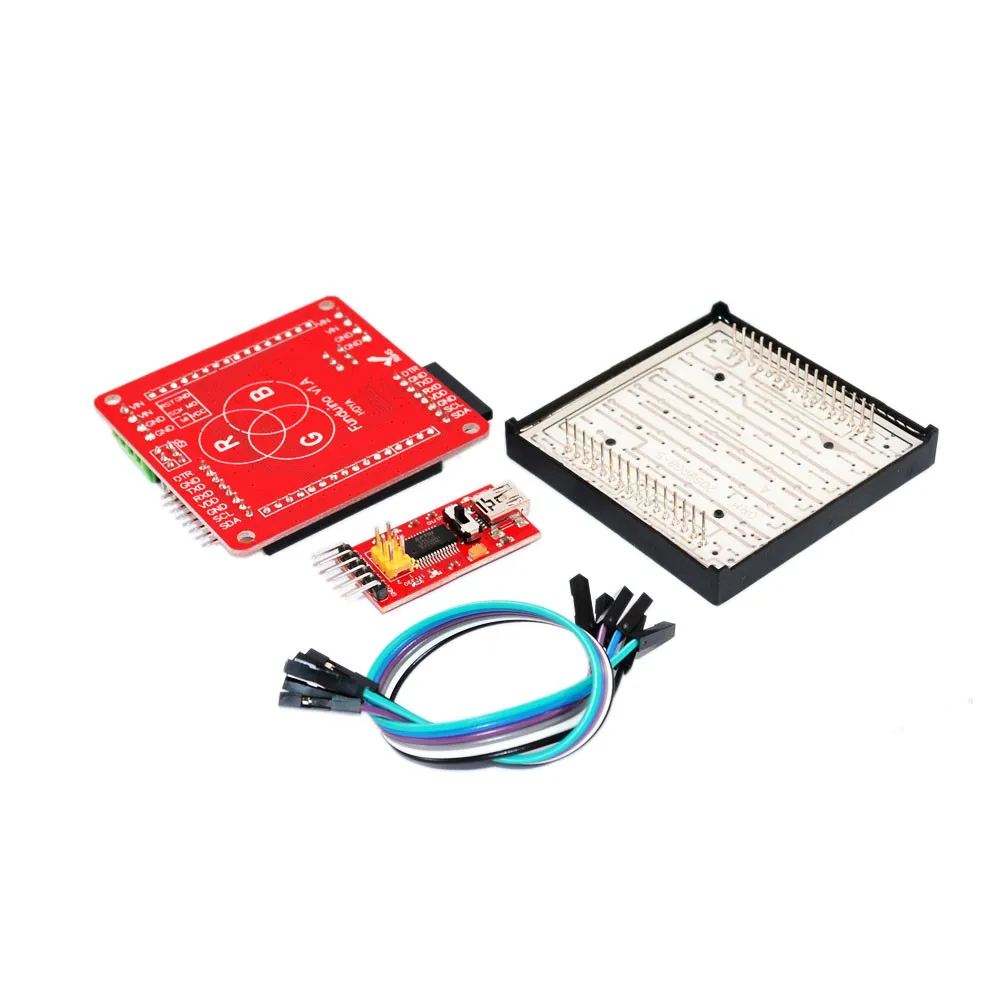

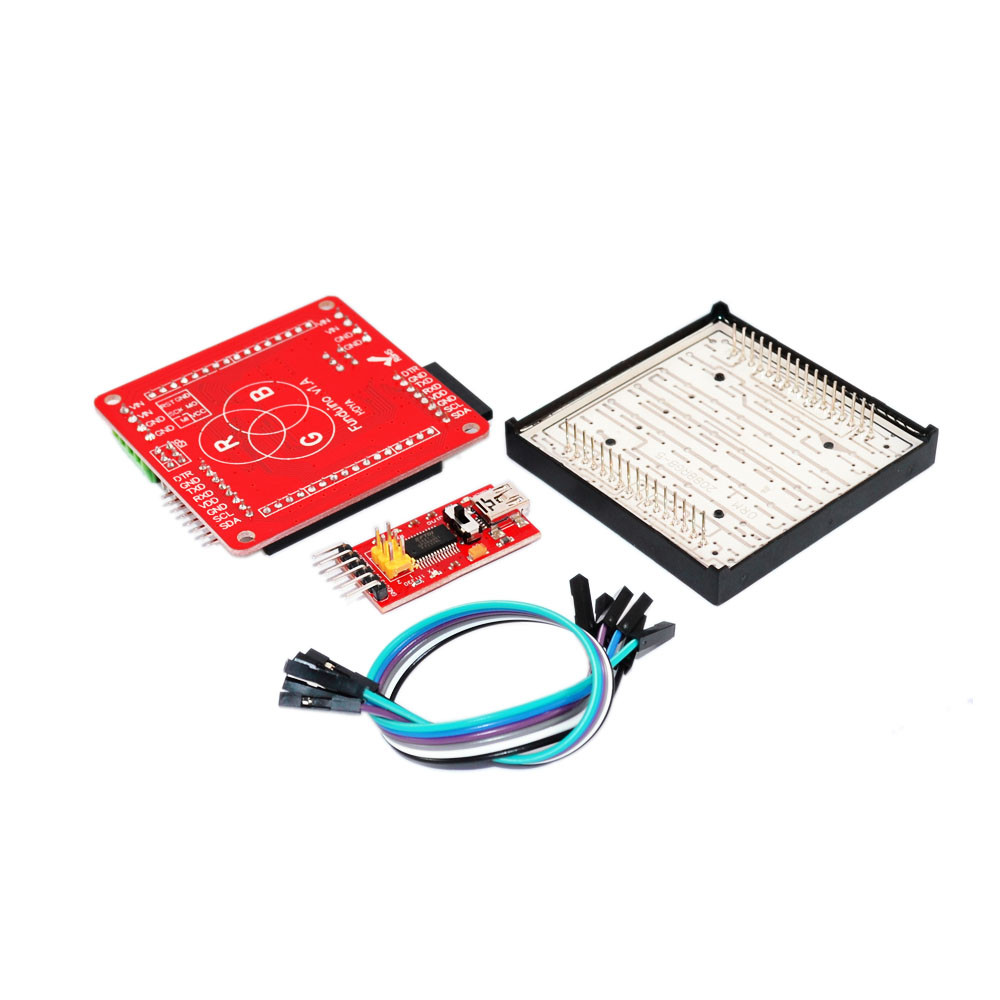

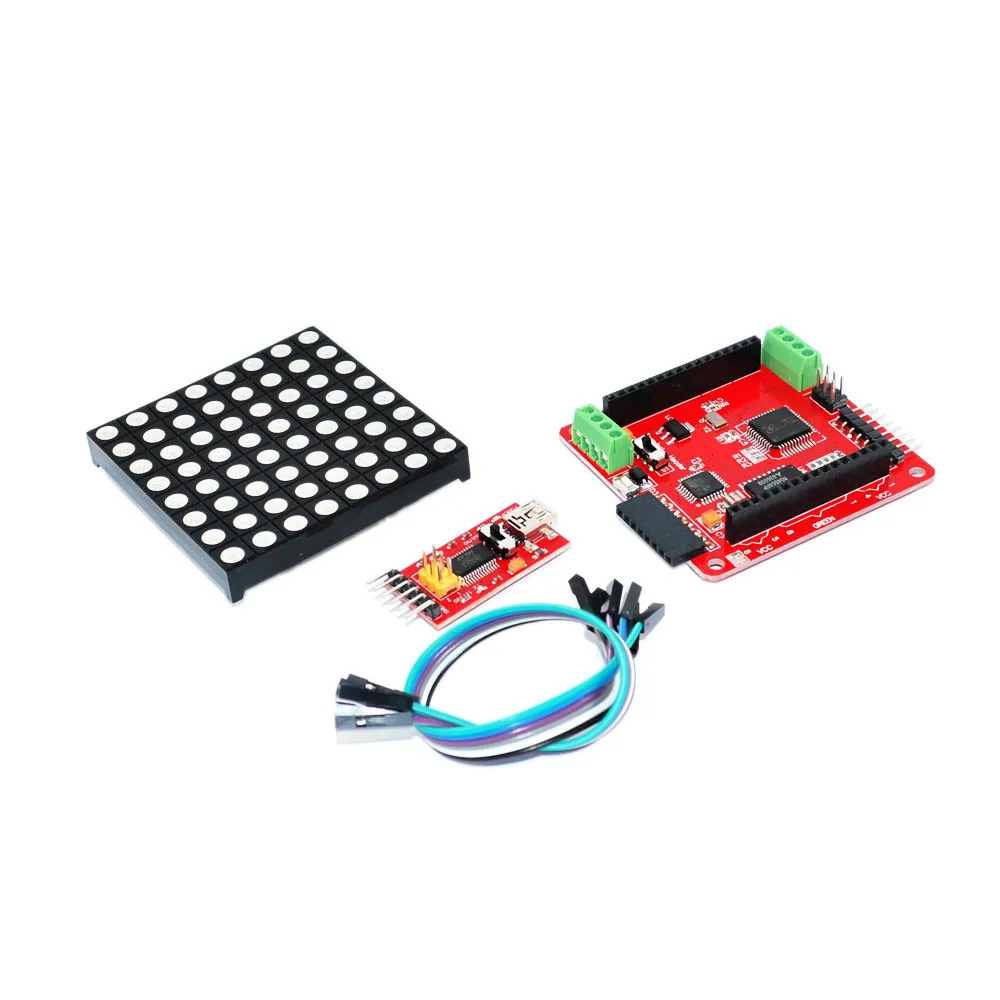

Shipping list:

1. full color RGB driver board  * 1

2.FTDI program download * 1

3. female-female DuPont line (6PIN) * 1

4. 8×8 RGB Dot Matrix *1
