Free shipping! ! 2016 new! Keyestudio 4-channel 5V Relay Module for Arduino

KS0058
Price:
Wholesale:
5+
$7.12
    Please select the information you wantX
Quantity:
-
+
(851 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(100)



1 2 3 4 6 7
Introduction

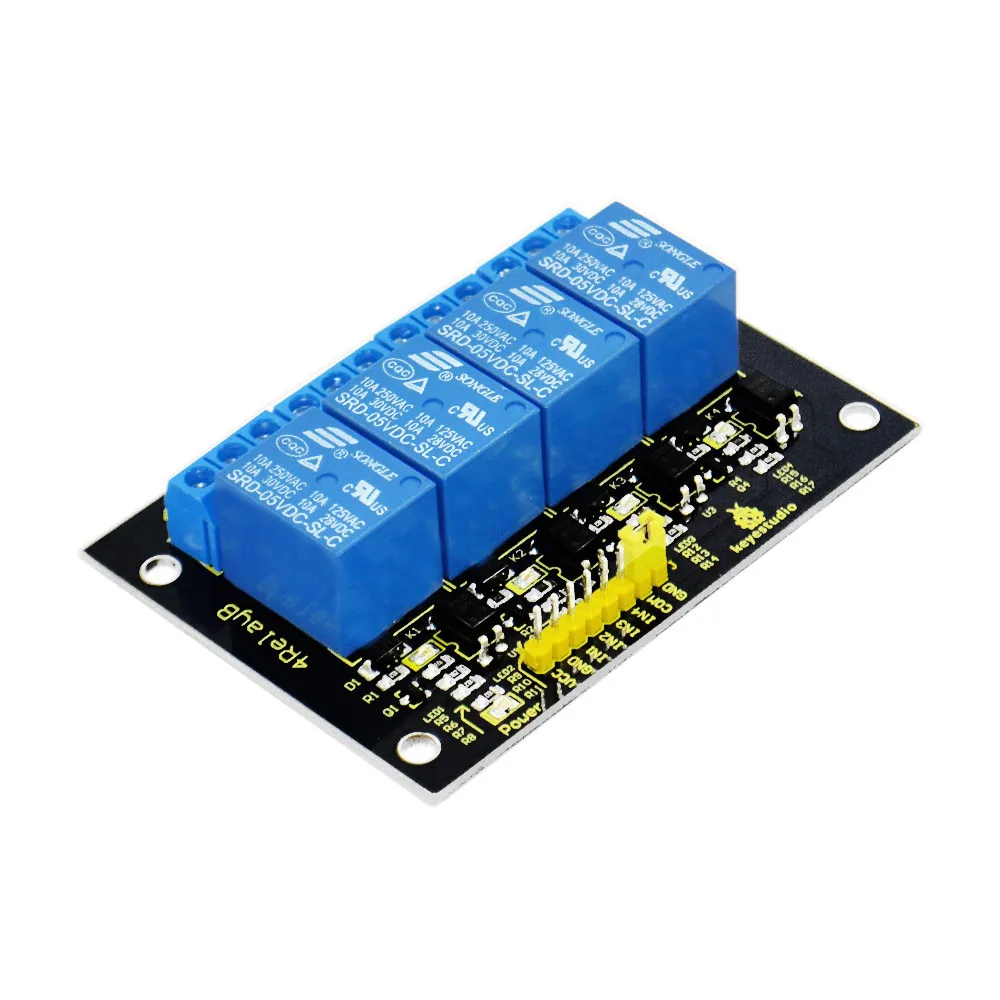

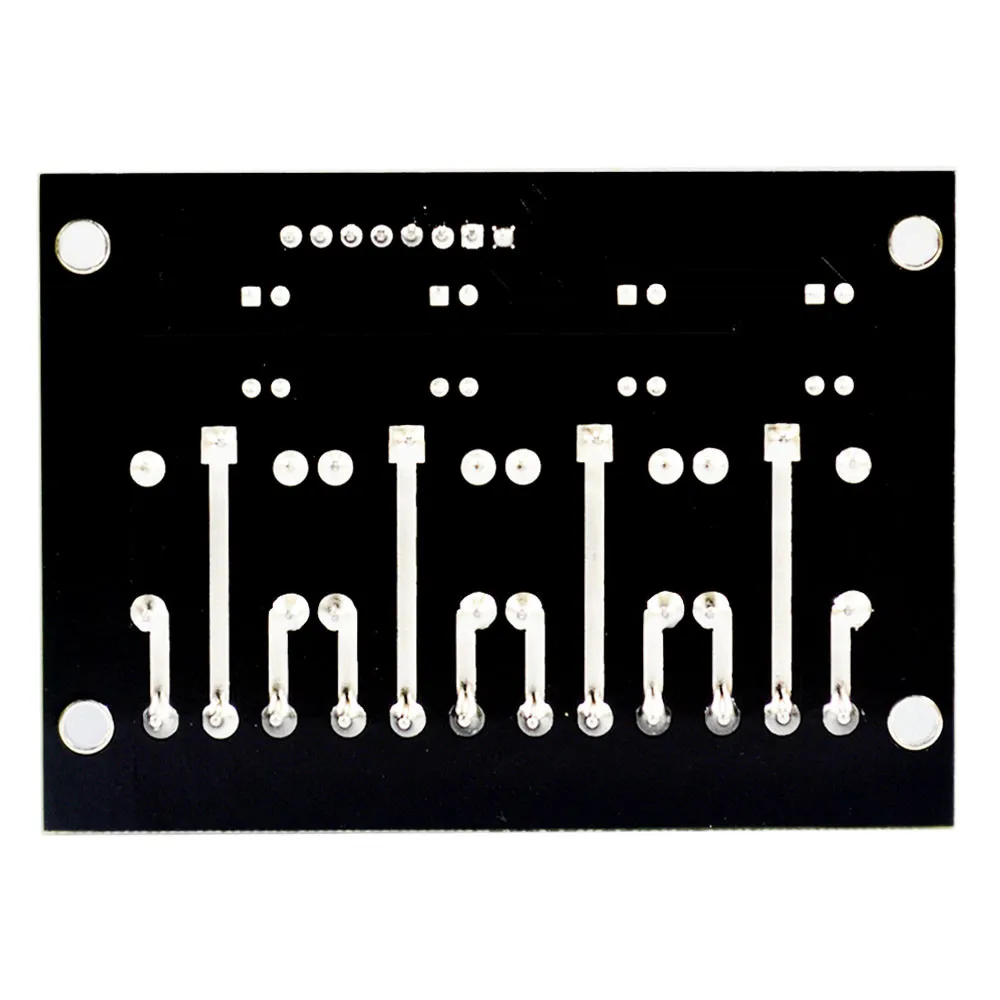

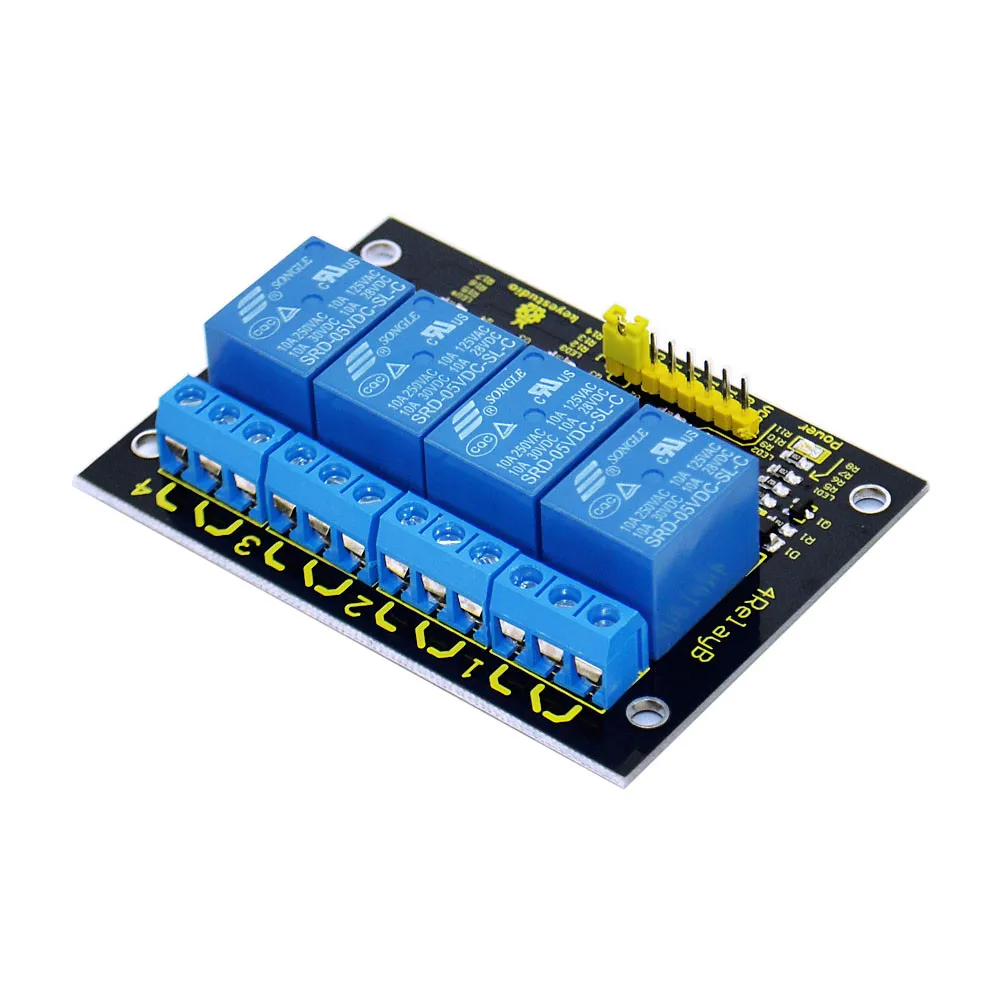

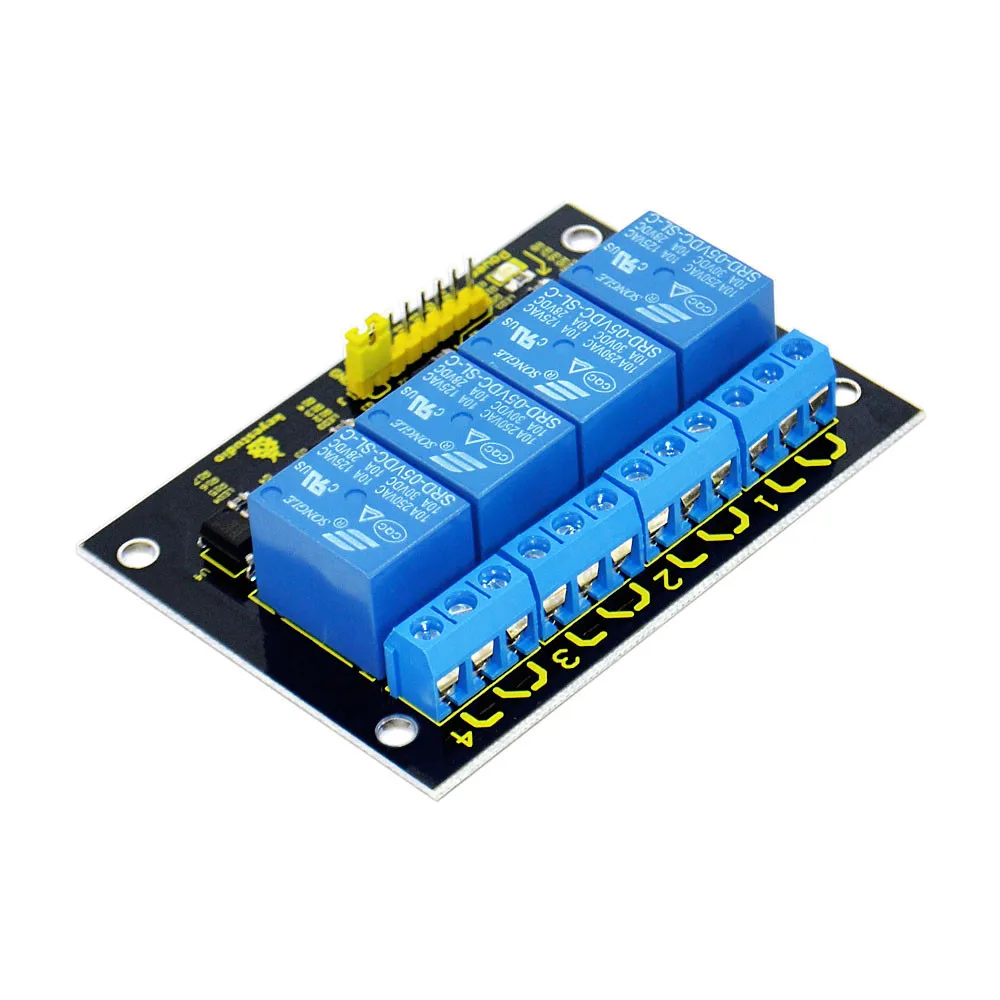

This Relay employs high quality relay with four channels input and four channels output. It can be connected to 250V/10A AC element or 24V/10A DC element to the maximum, therefore, it can be used to control lights, motors and etc.
The modularized design makes it easy to connect to Arduino expansion board. The output state of the relay is shown by a luminous diode for the convenience of application.

Specification
  • Control signal: TTL voltage
  • Rated load:
    10A 250VAC
    10A 125VAC
    10A 30DC
    10A 28VDC
  • Rated Through-current: 10A(NO) 5A(NC)
  • Max Switching Voltage: 250VAC 30VDC
  • Contact actuation time: <10ms

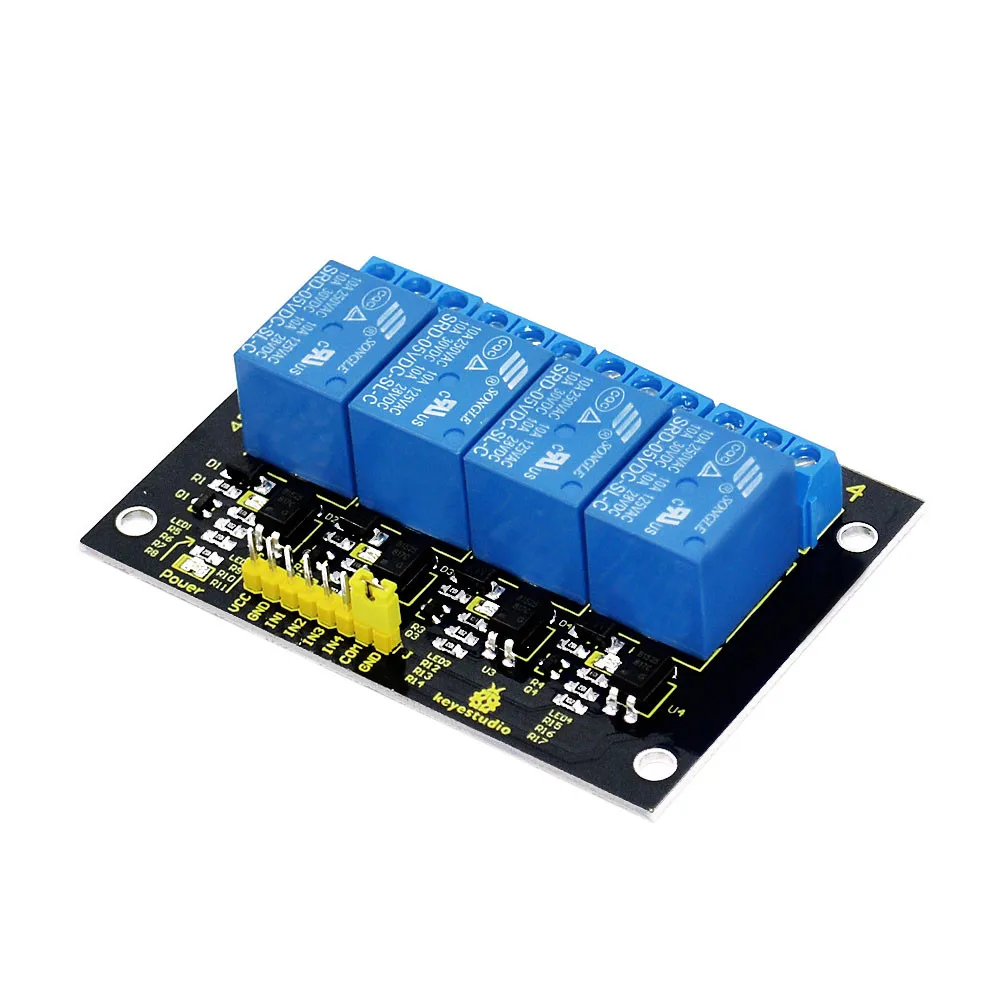

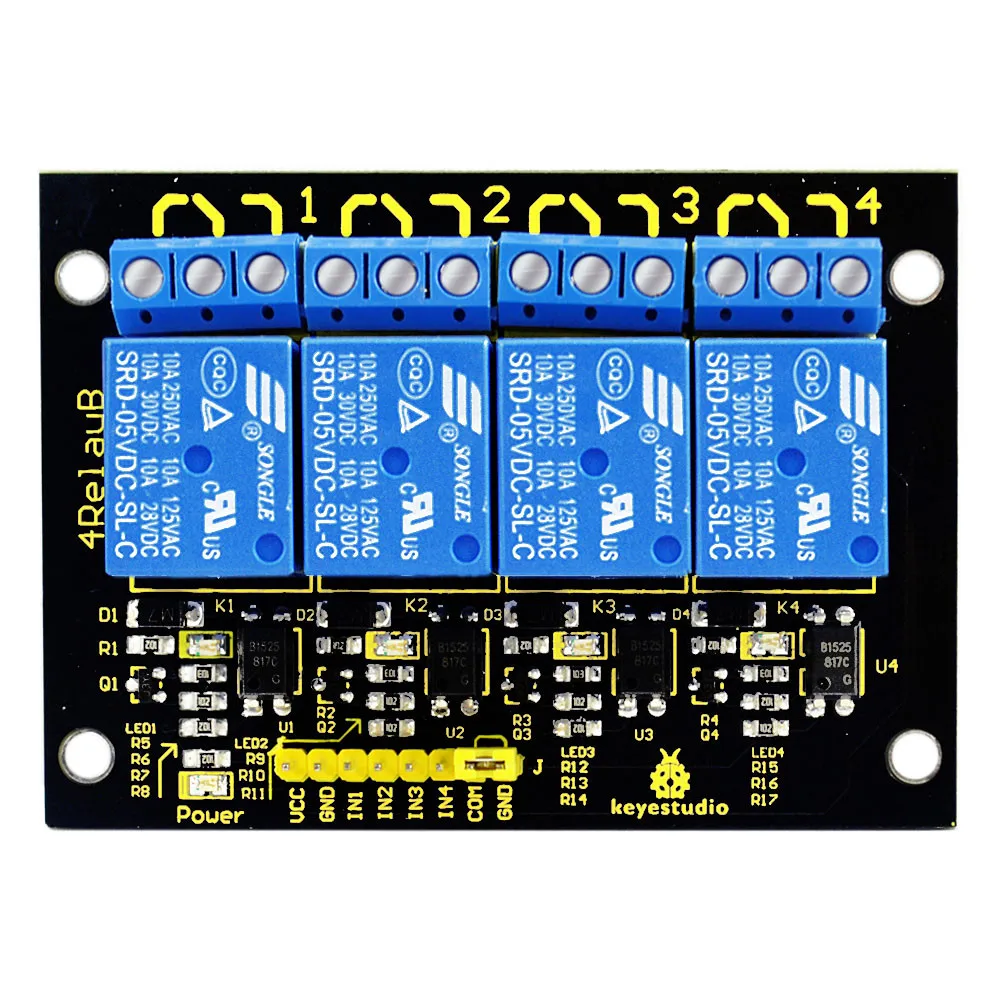

  • Definition of module pins
    i)  Pin 1 -Pin 4----Controlling end
    ii) Power supply (VCC)
    iii) Ground (GND)
Sample code:

int BASE = 2 ; // I/O pin connected to the first relay
int NUM = 4; //total number of all relays
void setup()
{
for (int i = BASE; i < BASE + NUM; i ++)
{
pinMode(i, OUTPUT); //set digital I/O pin as output
}
}
void loop()
{
for (int i = BASE; i < BASE + NUM; i ++)
{
digitalWrite(i, LOW); //set digital I/O pin as ‘low’, i.e. turning off the relay gradually
delay(200); //delay
}
for (int i = BASE; i < BASE + NUM; i ++)
{
digitalWrite(i, HIGH); // set digital I/O pin as ‘low’. i.e. turning on the relay gradually
delay(200); //delay
}
}
