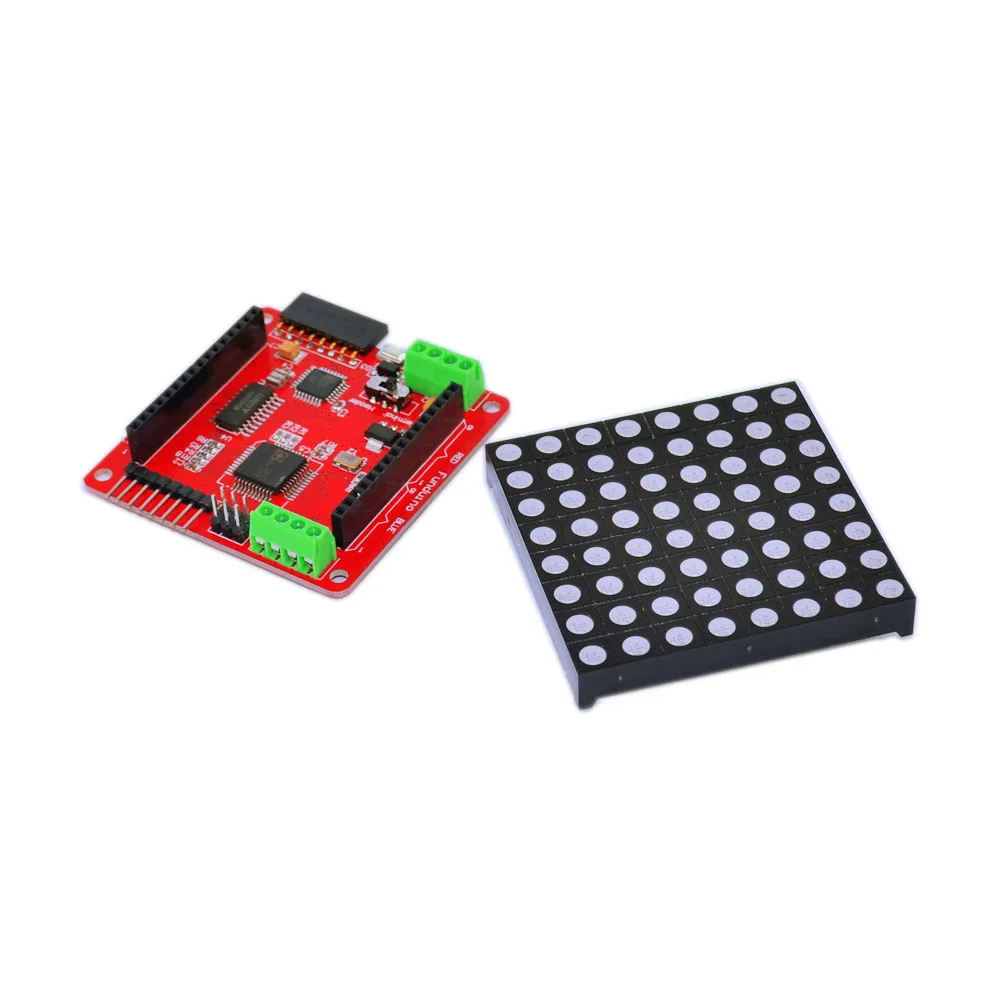

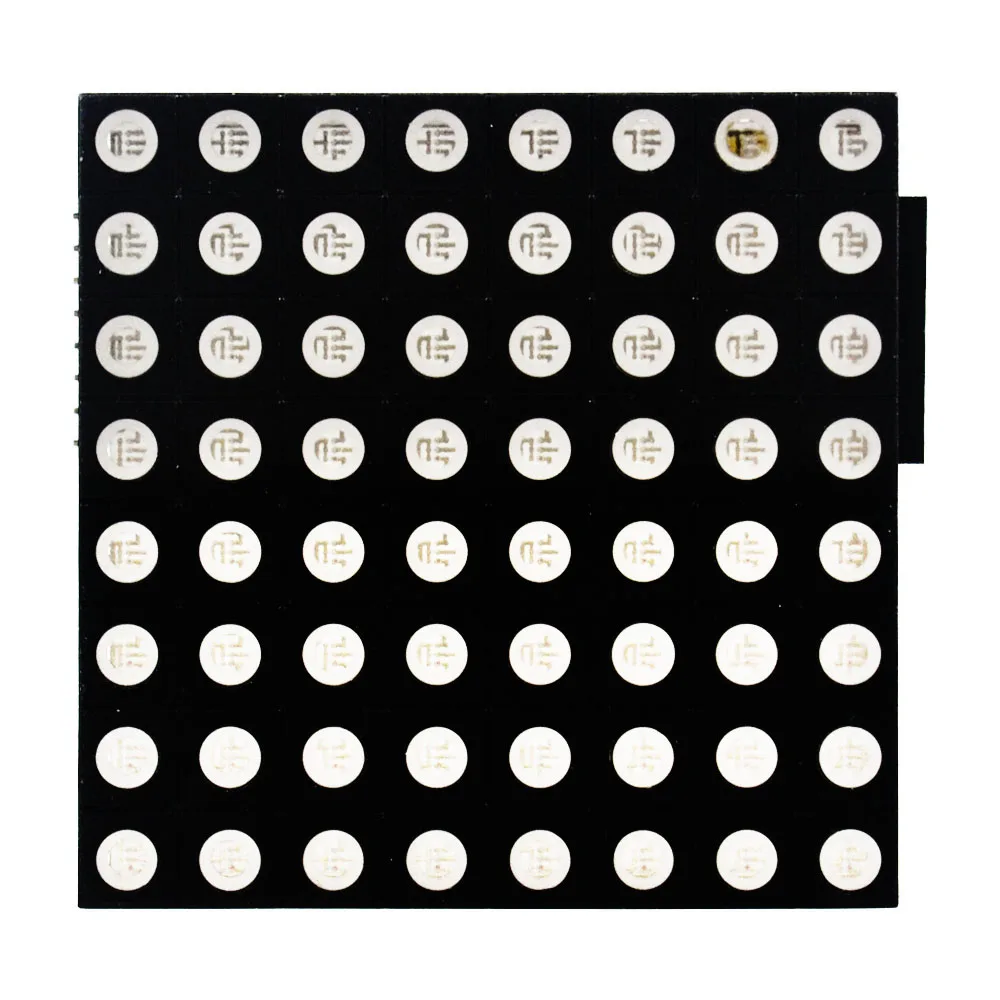

Free shipping! 1PCS Full color 8 * 8 LED RGB matrix screen driver board + 1PCS RGB dot matrix for Arduino

MD0078
Price:
Wholesale:
5+
$13.21
    Please select the information you wantX
Quantity:
-
+
(963 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(95)



MD0078 (3) MD0078 (8) MD0078 (10) MD0078 (4) MD0078 (5) MD0078 (6)

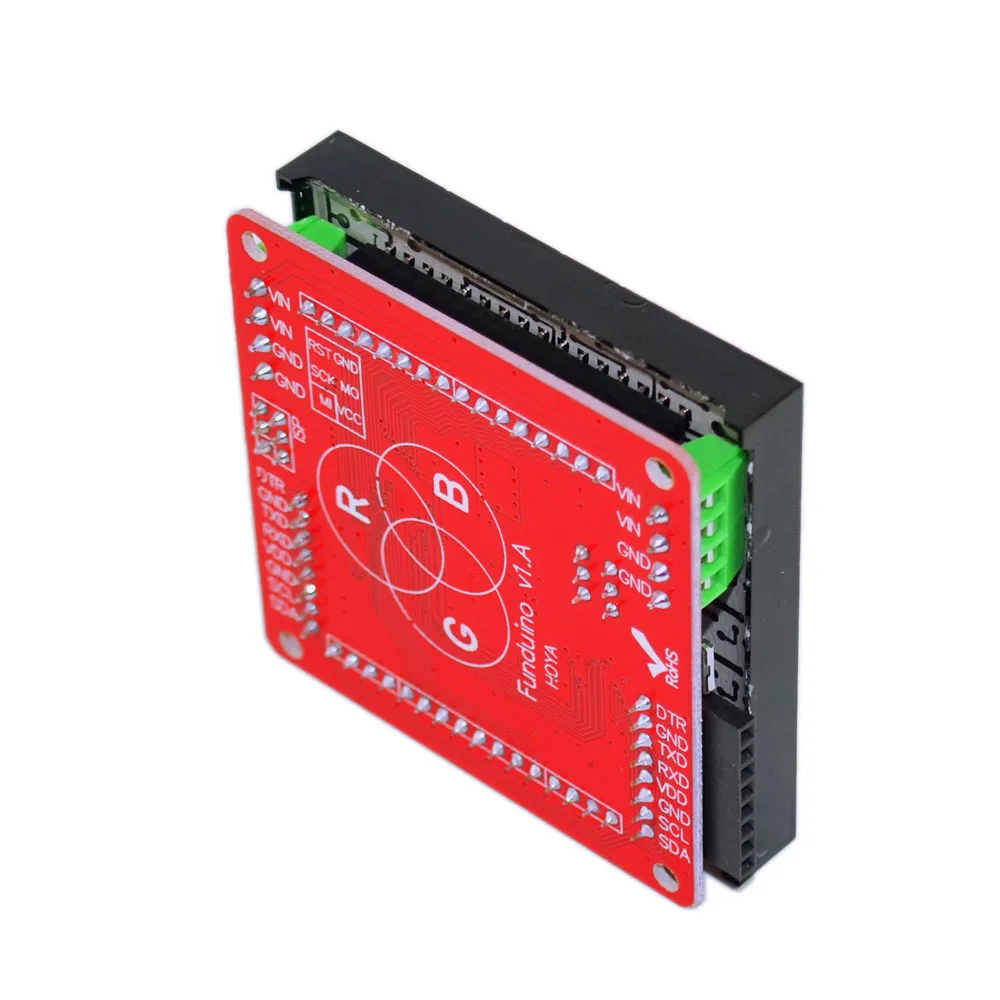

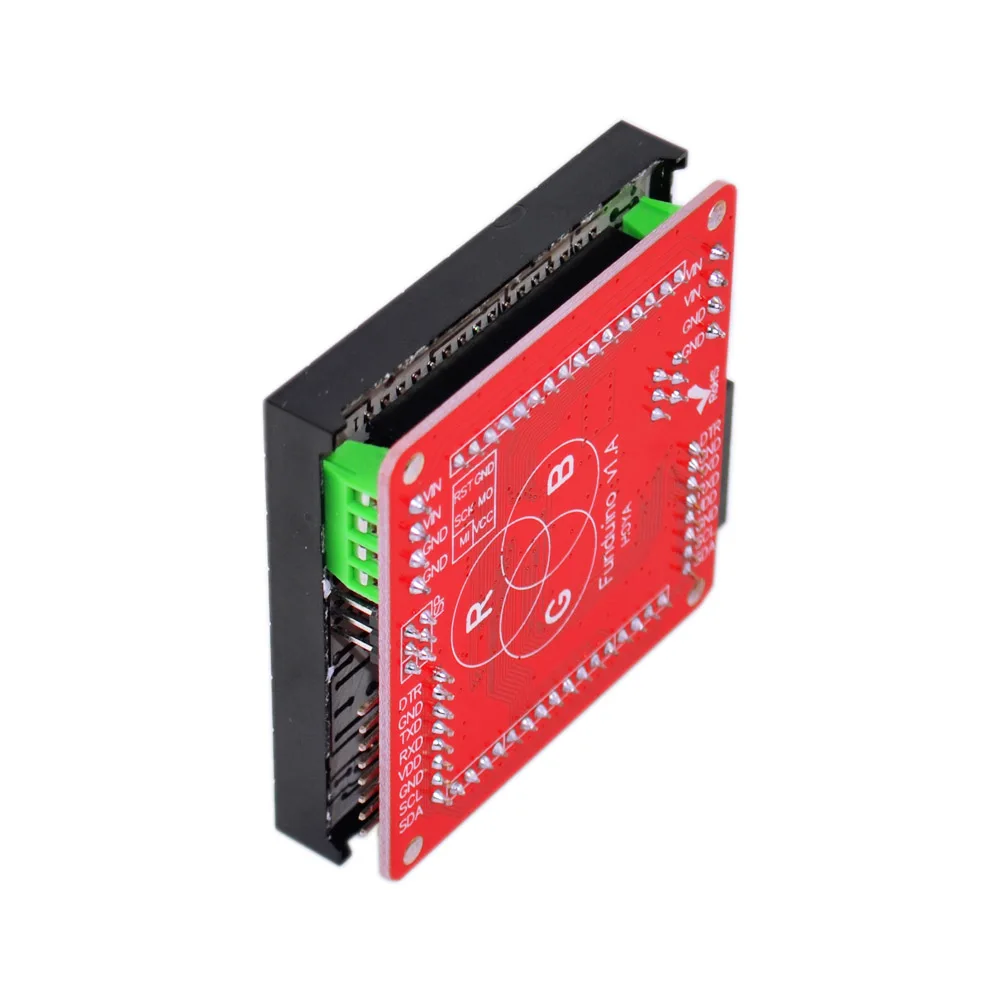

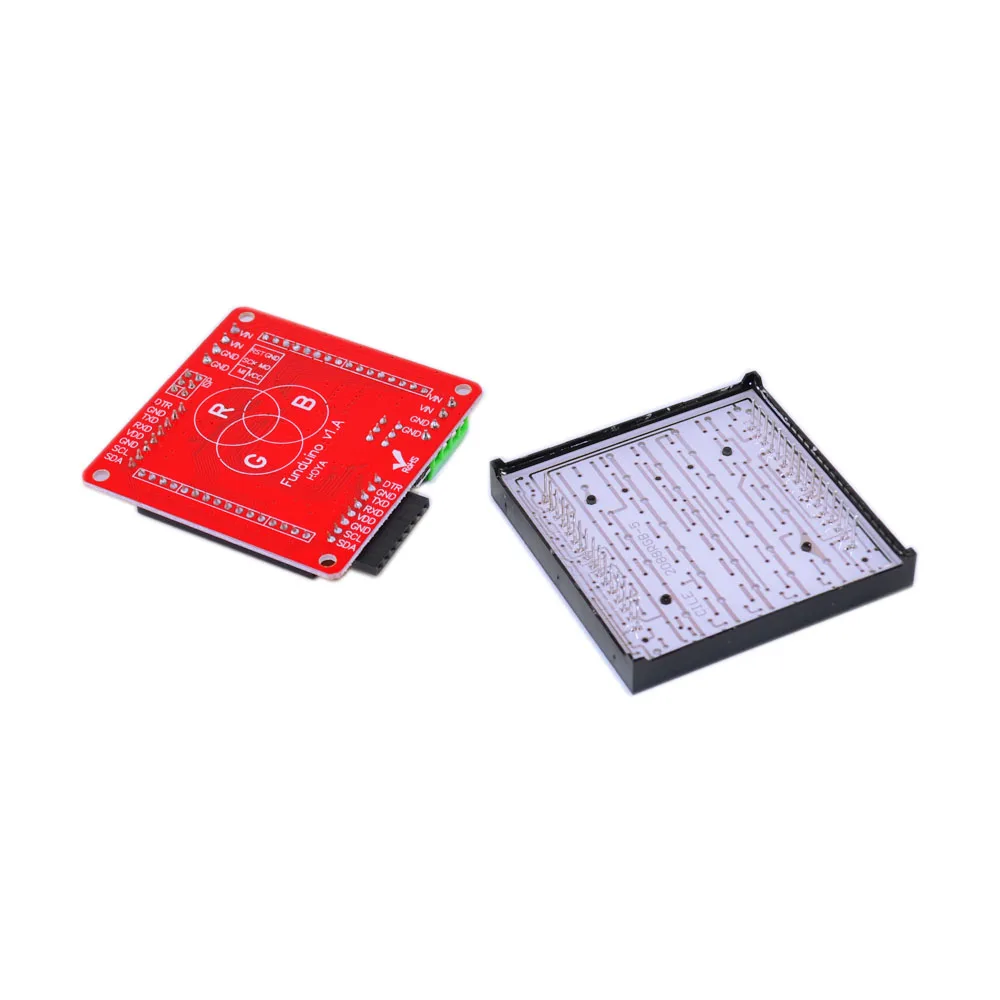

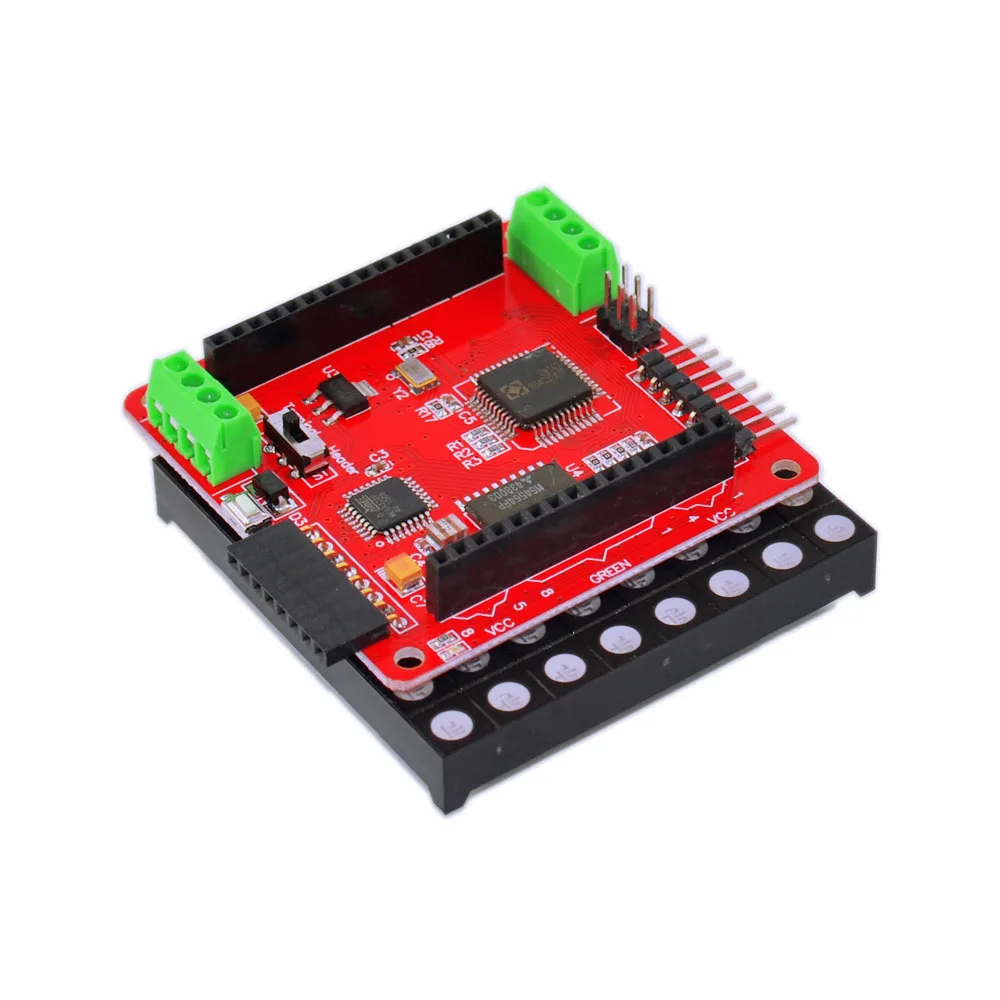

Full-color RGB dot matrix driver board is a specialized RGB full color dot matrix design of a control panel module. This module addition to RGB dot matrix drive independently, it also can be used as a rduino dashboard to use. Very convenient and practical. Onboard chip is ATmega 328 chip, board above also raises the ISP interface, you can always give 328 chip programmed bootloader. The disadvantage is that, unlike other rduino Uno board, have no leads corresponding I / 0 ports, but raises some IIC interface and power supply interface.

Product Features

6 color support;

Support for hardware 16MHZ PWM

There is no additional circuitry

Dedicated GPIO and ADC interface

Support for hardware URAT and IIC communication

Each channel 24-channel constant current up to 100mA channel

8-channel constant current source driver current up to 500mA per channel

Power Supply: + 5V to + 5.3V.

Current: Max 300mA.

Operating temperature range: -10 ~ + 50
