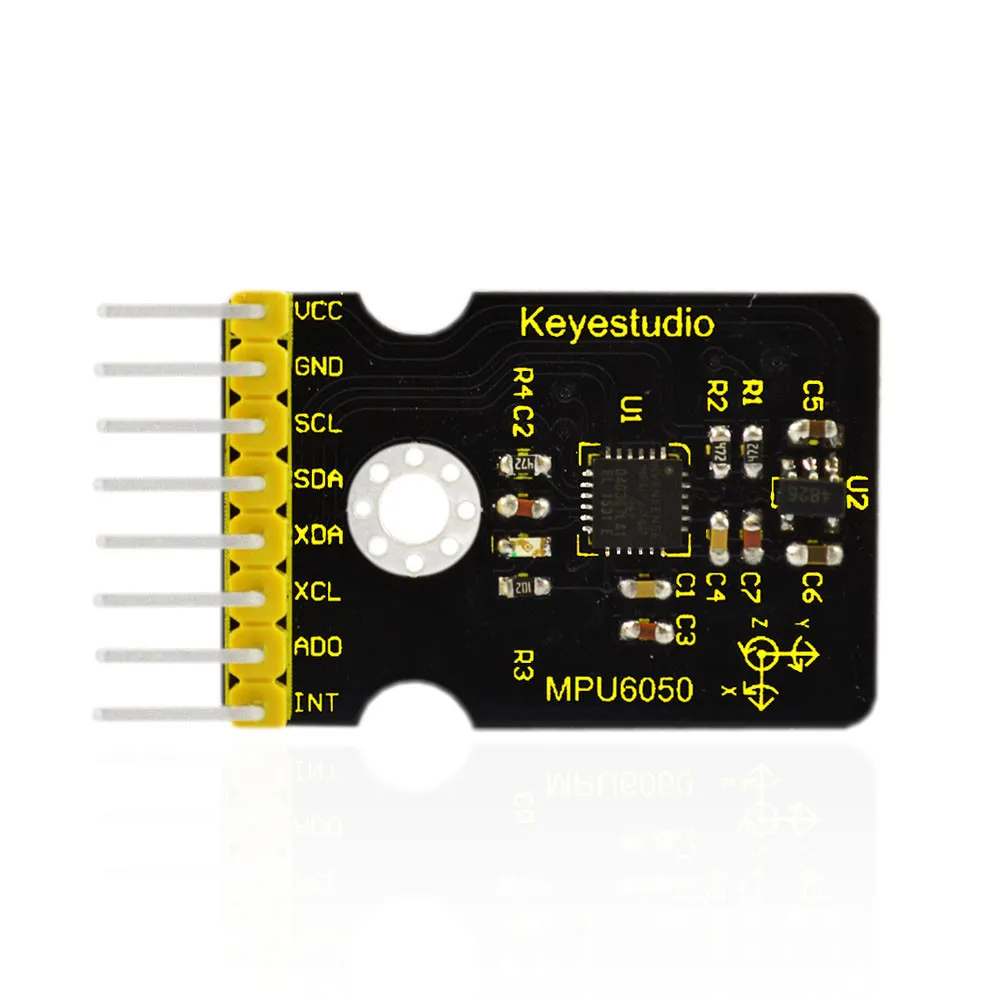

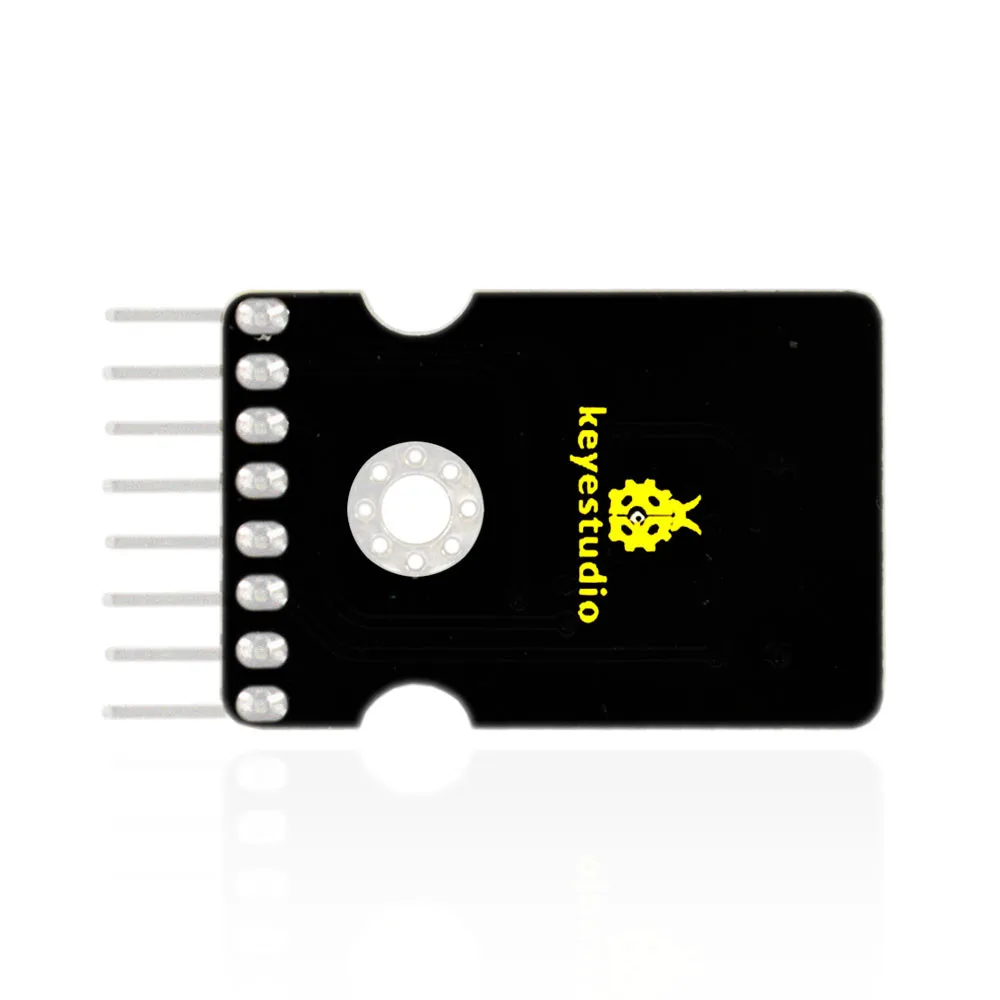

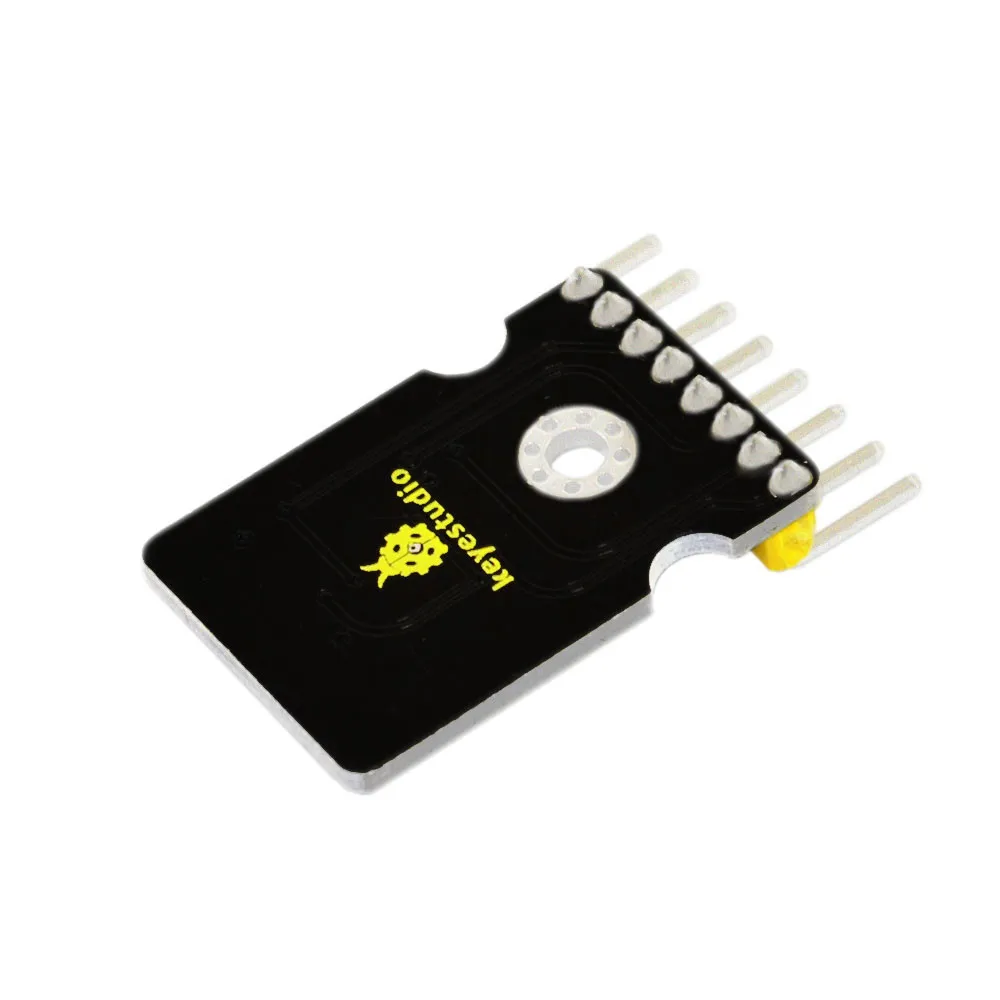

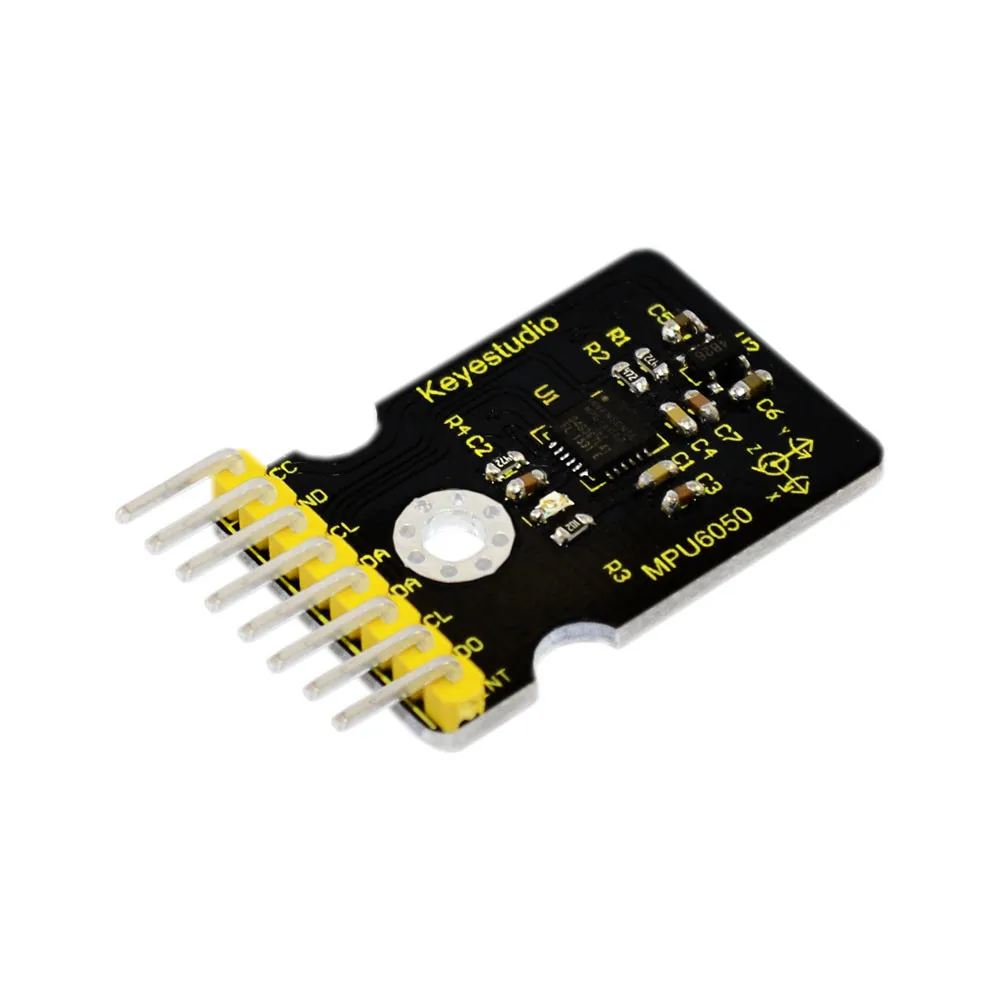

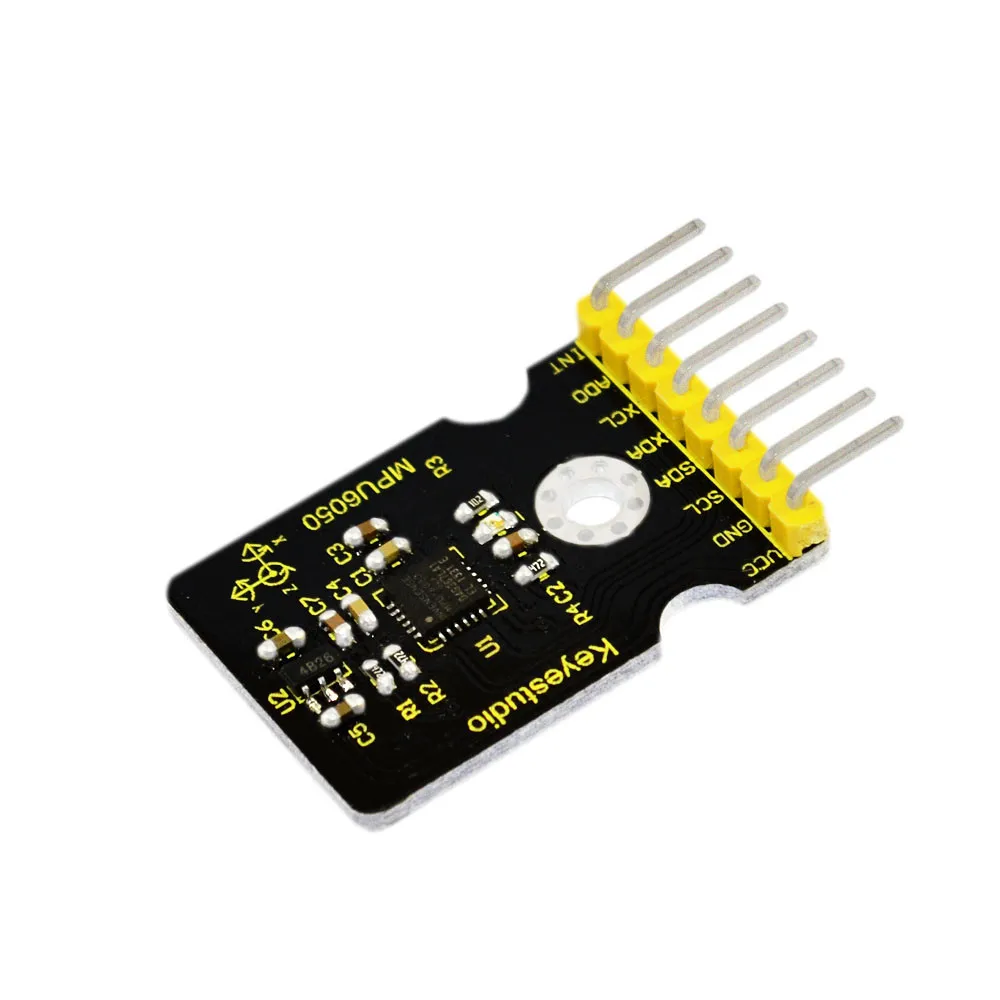

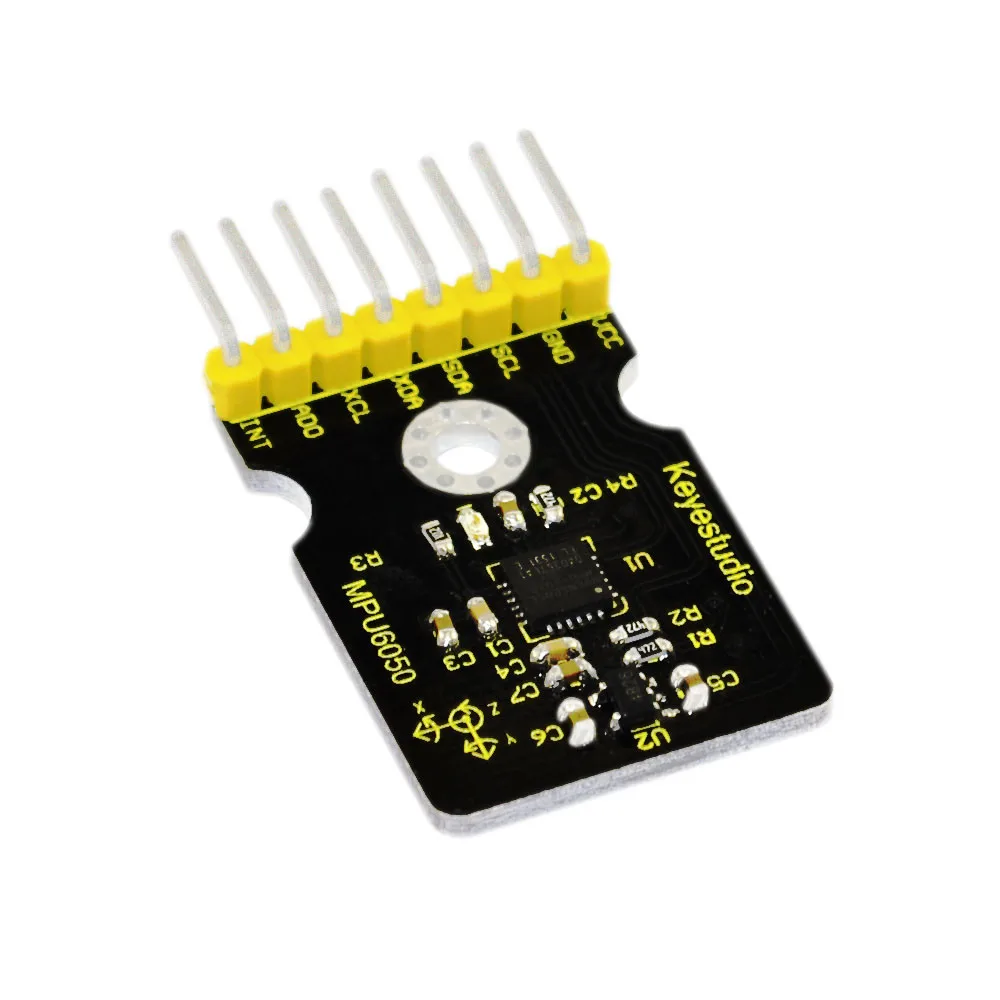

Free shipping! keyestudio GY-521 MPU6050 3 Axis Gyroscope and Accelerometer module for Arduino

KS0170
Price:
Wholesale:
5+
$4.74
    Please select the information you wantX
Quantity:
-
+
(955 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(71)
3 3r. 4t 54 KS0170 6050 (1) KS0170 6050 (2)

Introduction

The MPU-6050 is the world’s first integrated 9-axis MotionTracking device that combines a

3-axis MEMS gyroscope, 3-axis MEMS accelerometer, and a Digital Motion Processor (DMP). With its dedicated I2C sensor bus, it directly accepts inputs from an external 3-axis compass to

provide a complete 9-axis output.  The MPU-6050 is also designed to interface with multiple non-

inertial digital sensors, such as pressure sensors.

The MPU-6050 features three 16-bit analog-to-digital converters (ADCs) for digitizing the

gyroscope outputs and three 16-bit ADCs for digitizing the accelerometer outputs.  For precision

tracking of both fast and slow motions, the parts feature a user-programmable gyroscope full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps) and a user-programmable accelerometer full-

scale range of ±2g, ±4g, ±8g, and ±16g.

Specification

1. Chip: MPU-6050

2. Power supply: 3-5V(Internal low offset voltage )

3. Communication method: standard IIC protocol

4. Built in 16-bit analog-to-digital converter, 16-bit data output

5. Gyroscope range: ±250 500 1000 2000°/sec

6. Accelerometer range: ±2±4±8±16g

7. Pin pitch: 2.54mm
